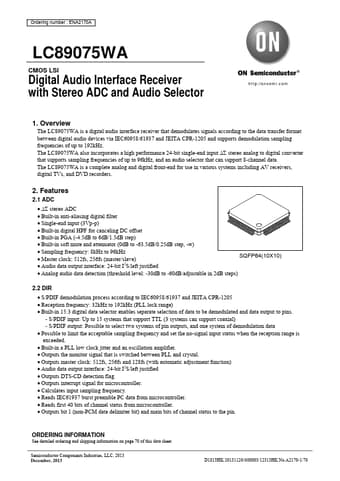

Preview of LC89075WA PDF
LC89075WA Datasheet Preview Page 2 LC89075WA Datasheet Preview Page 3

Datasheet Details

Part number:

LC89075WA

Manufacturer:

ON Semiconductor ↗

File Size:

575.47 KB

Description:

Digital audio interface receiver.

LC89075WA, Digital Audio Interface Receiver

OOrdrdeerirninggnnuummbbeerr: :EENNAA22117700A LC89075WA CMOS LSI Digital Audio Interface Receiver with Stereo ADC and Audio Selector http://onsemi.com 1.

Overview The LC89075WA is a digital audio interface receiver that demodulates signals according to the data transfer format between digital audio devices via IEC60958/61937 and JEITA CPR-1205 and supports demodulation sampling frequencies of up to 192kHz.

The LC89075WA also incorporates a high performance 24-bit single-end input  stereo an

LC89075WA Features

* 2.1 ADC

*  stereo ADC

* Built-in anti-aliasing digital filter

* Single-end input (3Vp-p)

* Built-in digital HPF for canceling DC offset

* Built-in PGA (-4.5dB to 6dB/1.5dB step)

* Built-in soft mute and attenuator (0dB to -63.5dB/0.25dB step, -)

* Sampling freq
