LC89075W-H Digital Audio Interface Receiver

www.DataSheet.co.kr Ordering number : ENA1858A CMOS IC LC89075W-H 1. Overview Digital Audio Interface Receiver with Stereo ADC and Audio Selector The LC89075W-H is a digital audio interface receiver that demodulates signals according to the data transfer format between digital audio devices via IEC60958/61937 and JEITA CPR-1205 and supports demodulation sampling frequencies of up to 192kHz. The LC89075W-H also incorporates a high performance 24-bit single-end input ΔΣ stereo analog to digit.

LC89075W-H Features

* 2.1 ADC

* ΔΣ stereo ADC

* Built-in anti-aliasing digital filter

* Single-end input (3Vp-p)

* Built-in digital HPF for canceling DC offset

* Built-in PGA (-4.5dB to 6dB/1.5dB step)

* Built-in soft mute and attenuator (0dB to -63.5dB/0.25dB step, -∞)

LC89075W-H_SanyoSemiconDevice.pdf

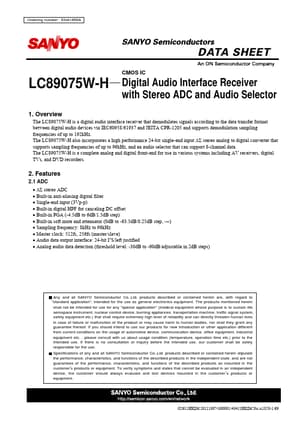

LC89075W-H Datasheet Preview — Preview of LC89075W-H PDF

Datasheet Details

Part number:

LC89075W-H

Manufacturer:

Sanyo Semicon Device

File Size:

556.31 KB

Description:

Digital audio interface receiver.
