LC89052T, Digital Audio Interface Receiver
Table 5.1 Pin Functions Pin No.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Name XOUT ERROR ___ PD NC CE CL DI DO E / INT ______ AUDIO _____ UGPI RXIN DVDD AVDD LPF NC AGND DGND CKOUT BCK LRCK DATAO SDIN XIN O O O O I5 I O I5 I5 I5 O O O O I5 I/O O O I5 Oscillation amplifier circu

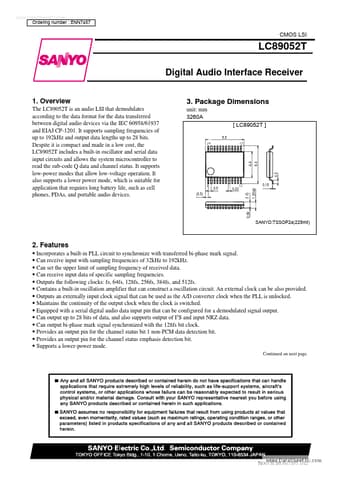

www.DataSheet4U.com Ordering number : ENN7457 CMOS LSI LC89052T Digital Audio Interface Receiver 1.
Overview The LC89052T is an audio LSI that demodulates according to the data format for the data transferred between digital audio devices via the IEC 60958/61937 and EIAJ CP-1201.
It supports sampling frequencies of up to 192kHz and output data lengths up to 28 bits.
Despite it is compact and made in a low cost, the LC89052T includes a built-in oscillator and serial data input circuits and allo
LC89052T Features
* Incorporates a built-in PLL circuit to synchronize with transferred bi-phase mark signal.
* Can receive input with sampling frequencies of 32kHz to 192kHz.
* Can set the upper limit of sampling frequency of received data.
* Can receive input data of specific samplin
