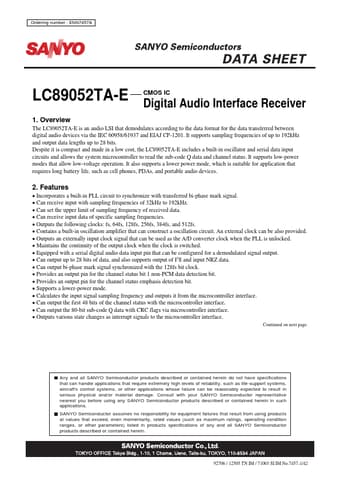

Preview of LC89052TA-E PDF
LC89052TA-E Datasheet Preview Page 2 LC89052TA-E Datasheet Preview Page 3

Datasheet Details

Part number:

LC89052TA-E

Manufacturer:

Sanyo Semicon Device

File Size:

330.58 KB

Description:

Digital audio interface receiver.

LC89052TA-E, Digital Audio Interface Receiver

Table 5.1 Pin Functions Pin No.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Name XOUT ERROR ___ PD NC CE CL DI DO E / INT ______ AUDIO _____ UGPI RXIN DVDD AVDD LPF NC AGND DGND CKOUT BCK LRCK DATAO SDIN XIN O O O O I5 I O I5 I5 I5 O O O O I5 I/O O O I5 Oscillation amplifier circu

www.DataSheet.co.kr Ordering number : ENN7457A LC89052TA-E 1.

Overview CMOS IC Digital Audio Interface Receiver The LC89052TA-E is an audio LSI that demodulates according to the data format for the data transferred between digital audio devices via the IEC 60958/61937 and EIAJ CP-1201.

It supports sampling frequencies of up to 192kHz and output data lengths up to 28 bits.

Despite it is compact and made in a low cost, the LC89052TA-E includes a built-in oscillator and serial data input circu

LC89052TA-E Features

* Incorporates a built-in PLL circuit to synchronize with transferred bi-phase mark signal.

* Can receive input with sampling frequencies of 32kHz to 192kHz.

* Can set the upper limit of sampling frequency of received data.

* Can receive input data of specific samplin
