LC89058W-E - Digital Audio Interface Receiver

Datasheet Summary

Features

for its low cost and is optimal for receiving digital data for AV amplifiers and receivers. 2. Features 2.1 Clock.
Built-in PLL false lock prevention circuit to provide accurate lock.
Includes built-in oscillation amplifier and frequency divider for quartz resonator.
Output clock: 512fs, 256fs, 128fs, 64fs, 32fs, 16fs, 2fs, fs, 1/2fs, and 1/4fs.
Possible to set the oscillation amplifier (external input) clock output regardless of the PLL status.

Datasheet Details

Part number	LC89058W-E
Manufacturer	Sanyo Semicon Device
File Size	416.72 KB
Description	Digital Audio Interface Receiver
Datasheet	LC89058W-E Datasheet
Additional preview pages of the LC89058W-E datasheet.

📁 Similar Datasheet

LC89058W-E - Digital Audio Interface Receiver (ON Semiconductor)

LC89051V - Digital Audio Interface Receiver (Sanyo)

LC89057W-VF4A-E - Digital Audio Interface Receiver (ON Semiconductor)

LC8905V - Digital Audio Interface Receiver (Sanyo)

LC8900KQ - Digital Audio Interface Receiver (Sanyo)

LC8901 - Digital Audio Interface Receiver (Sanyo)

LC8901Q - Digital Audio Interface Receiver (Sanyo)

LC8902 - Digital Audio Interface Receiver (Sanyo)

LC8902Q - Digital Audio Interface Receiver (Sanyo)

LC8903 - Digital Audio Interface Receiver (Sanyo)

Full PDF Text Transcription

Click to expand full text

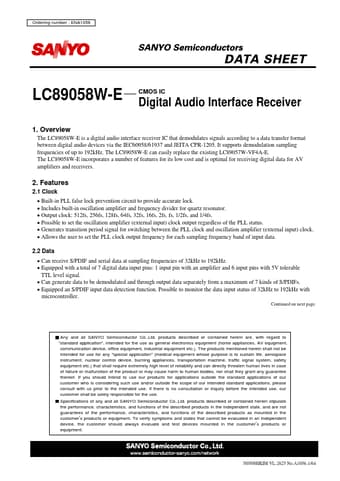

www.DataSheet.co.kr Ordering number : ENA1056 LC89058W-E 1. Overview CMOS IC Digital Audio Interface Receiver The LC89058W-E is a digital audio interface receiver IC that demodulates signals according to a data transfer format between digital audio devices via the IEC60958/61937 and JEITA CPR-1205. It supports demodulation sampling frequencies of up to 192kHz. The LC89058W-E can easily replace the existing LC89057W-VF4A-E. The LC89058W-E incorporates a number of features for its low cost and is optimal for receiving digital data for AV amplifiers and receivers. 2. Features 2.1 Clock • Built-in PLL false lock prevention circuit to provide accurate lock. • Includes built-in oscillation amplifier and frequency divider for quartz resonator.
