LC898113 Datasheet - ON Semiconductor

Optical Image Stabilization (OIS) Controller & Driver

LC898113 Features

* Serial interface SPI (mode0, mode3) I2C (F/S mode) Selection with MODE0 pin

* Built in Gyro filter

* Digital Gyro Support Built in Digital Gyro I/F for each manufacturer

* Stepping motor drive mode 1-2 phase W1-2 phase 2W1-2 phase 4W1-2 phase 8W1-2 phase LFLGA49 4x4 / FLGA49 Con

LC898113 General Description

I O B (I) B (O) INPUT P OUTPUT BIDIRECTION : INPUT at reset BIDIRECTION : OUTPUT at reset TYPE Power, GND NC NOT CONNECT Logic LSI SPI/I2C interface (Slave) SSB/I2CSA SCLK/I2CCK MOSI/I2CDT MISO/IOP5/MOND I B (I) B (I) B (O) SPI chip select/ I2C slave address select (L: 0100100, H: 0100101.

LC898113 Datasheet (179.03 KB)

LC898113 Datasheet Preview — Preview of LC898113 PDF

Datasheet Details

Part number:

LC898113

Manufacturer:

ON Semiconductor ↗

File Size:

179.03 KB

Description:

Optical image stabilization (ois) controller & driver.

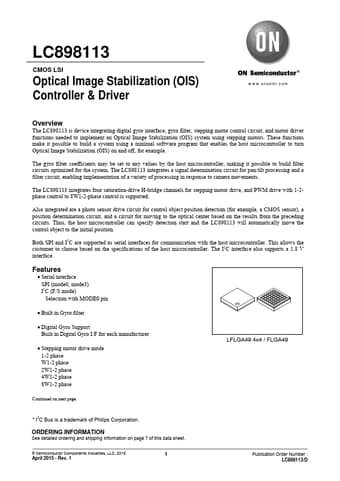

LC898113 CMOS LSI Optical Image Stabilization (OIS) Controller & Driver www.onsemi.com Overview The LC898113 is device integrating digital gyro inte.
