LM201A - Non Compensated Single Operational Amplifiers

Product Overview

ON Semiconductor

📥 Download Datasheet

LM201A Non Compensated Single Operational Amplifiers by ON Semiconductor - Datasheet Preview — Datasheet preview – LM201A

Datasheet Details

Part number	LM201A
Manufacturer	ON Semiconductor
File Size	153.11 KB
Description	Non Compensated Single Operational Amplifiers
Datasheet	LM201A Datasheet

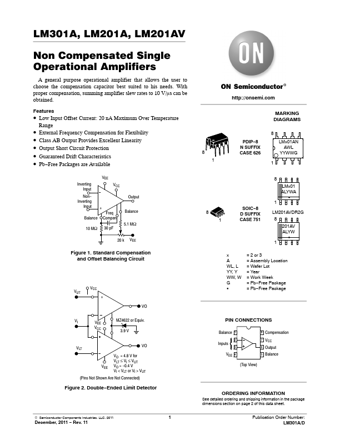

Additional preview pages of the LM201A datasheet.

Product details

Features

Low Input Offset Current: 20 nA Maximum Over Temperature Range.
External Frequency Compensation for Flexibility.
Class AB Output Provides Excellent Linearity.
Output Short Circuit Protection.
Guaranteed Drift Characteristics.
Pb.
Free Packages are Available Inverting Input VEE VCC NonInverting Input + Freq Balance Compen 10 MW 30 pF Output Balance 5.1 MW 20 k VEE Figure 1. Standard Compensation and Offset Balancing Circuit VUT.
