LM2902VN, LM224 Single Supply Quad Operational Amplifiers

LM2902VN Description

Single Supply Quad Operational Amplifiers LM324, LM324A, LM324E, LM224, LM2902, LM2902E, LM2902V, NCV2902 The LM324 series are low *cost, quad .

LM2902VN Features

* Short Circuited Protected Outputs
* True Differential Input Stage
* Single Supply Operation: 3.0 V to 32 V
* Low Input Bias Currents: 100 nA Maximum (LM324A)
* Four Amplifiers Per Package
* Internally Compensated
* Common Mode Range Extends t

LM2902VN Applications

* The quad amplifier can operate at supply voltages as low as 3.0 V or as high as 32 V with quiescent currents about one
* fifth of those associated with the MC1741 (on a per amplifier basis). The common mode input range includes the negative supply, thereby eliminating the necessity for extern

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LM2902VN, LM224. Please refer to the document for exact specifications by model.

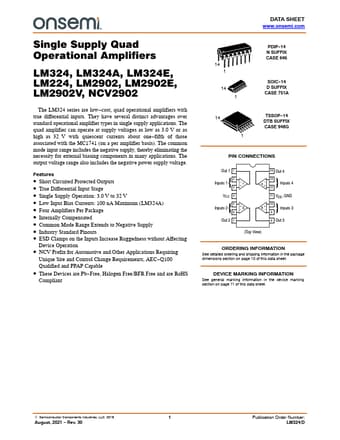

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM2902VN, LM224
Manufacturer
ON Semiconductor ↗
File Size
345.69 KB
Datasheet
LM224_ONSemiconductor.pdf
Description
Single Supply Quad Operational Amplifiers
Note
This datasheet PDF includes multiple part numbers: LM2902VN, LM224.
Please refer to the document for exact specifications by model.
