LV8813G, LV8811G 3-phase BLDC motor driver

LV8813G Description

LV8811G, LV8813G Advance Information Motor Driver, 3-Phase, PWM, Full-Wave, BLDC Overview The LV8811G / LV8813G is a 3-phase BLDC motor driver which .
V-phase output pin U-phase output pin Inverter power supply and Motor current sense resistor pin Motor Current Sense Power supply pin Internal regulat.

LV8813G Features

* 3-phase full wave (sinusoidal) drive
* Any practical combination of slot and pole can be handled. (e. g. 3S3P, 3S4P, 6S4P, 6S8P, 12S8P, 9S12P and so on)
* built-in power FETs (P-MOS/N-MOS)
* Speed control function by direct PWM or DC voltage input
* Minimum i

LV8813G Applications

* Refrigerator
* PC
* Games XXXX = Specific Device Code Y = Year M = Month DDD = Additional Traceability Data ORDERING INFORMATION Ordering Code: LV8811G-AH LV8813G-AH Package TSSOP20J (Pb-Free / Halogen Free) Shipping (Qty / packing) 2000 / Tape & Reel † For information on

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LV8813G, LV8811G. Please refer to the document for exact specifications by model.

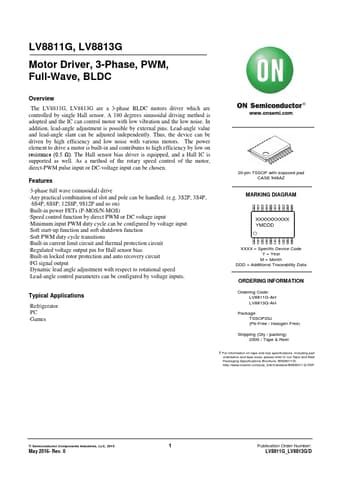

datasheet Preview Page 2 datasheet Preview Page 3
