LV8806GQ Datasheet - Sanyo Semicon Device

LV8806GQ_SanyoSemiconDevice.pdf

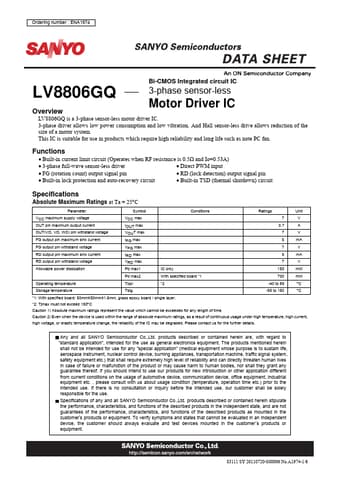

Preview of LV8806GQ PDF
LV8806GQ Datasheet Preview Page 2 LV8806GQ Datasheet Preview Page 3

Datasheet Details

Part number:

LV8806GQ

Manufacturer:

Sanyo Semicon Device

File Size:

297.36 KB

Description:

Motor driver ic.

LV8806GQ, Motor Driver IC

www.DataSheet.co.kr Ordering number : ENA1974 Bi-CMOS Integrated circuit IC LV8806GQ Overview 3-phase sensor-less Motor Driver IC LV8806GQ is a 3-phase sensor-less motor driver IC.

3-phase driver allows low power consumption and low vibration.

And Hall sensor-less drive allows reduction of the size of a motor system.

This IC is suitable for use in products which require high reliability and long life such as note PC fan.

Functions Built-in current limit circuit (Operates when R

LV8806GQ Features

* ion, current-carrying timing of the output is determined. By inserting a filter capacitor of about 1000 to 10000pF (recommendation) between COMIN and FIL, start-up failure caused
