LV88552, LV88551 Datasheet - ON Semiconductor

LV88552 Single-Phase PWM BLDC Motor Driver

LV88551, LV88552, LV88553, LV88554 Motor Driver, Single-Phase, PWM, Full-Wave, BLDC Motor Overview The LV88551JA/R, LV88552JA/R, LV88553JA/R and LV88554JA/R are the pre driver for a single phase BLDC motor, which have the closed loop controller for motor rotation speed. These are available to control a motor with low vibration and the low noise. In addition, lead angle adjustment is possible by external pins. Lead angle value and lead angle slant can be .

LV88552 Features

* Single

* phase Full Wave Drive Pre

* driver Include Closed Loop Speed Control

* Speed Control Function by PWM Duty Input (25 Hz to 100 kHz)

* Soft Start

* up Function and PWM Soft Switching Phase Transition

* Soft PWM Duty Cycle Transitions

LV88551-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: LV88552, LV88551. Please refer to the document for exact specifications by model.

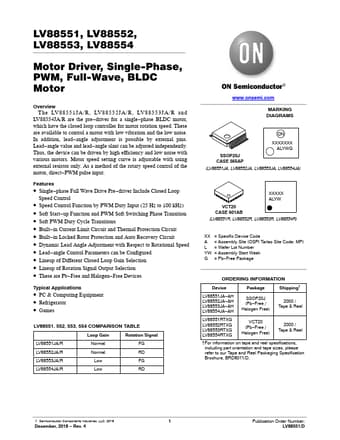

LV88552 Datasheet Preview Page 2 LV88552 Datasheet Preview Page 3

Datasheet Details

Part number:

LV88552, LV88551

Manufacturer:

ON Semiconductor ↗

File Size:

974.41 KB

Description:

Single-phase pwm bldc motor driver.

Note:

This datasheet PDF includes multiple part numbers: LV88552, LV88551.
Please refer to the document for exact specifications by model.
