LV88554, LV88551 Single-Phase PWM BLDC Motor Driver

LV88554 Description

LV88551, LV88552, LV88553, LV88554 Motor Driver, Single-Phase, PWM, Full-Wave, BLDC Motor Overview The LV88551JA/R, LV88552JA/R, LV88553JA/R and LV8.

LV88554 Features

* Single
* phase Full Wave Drive Pre
* driver Include Closed Loop Speed Control
* Speed Control Function by PWM Duty Input (25 Hz to 100 kHz)
* Soft Start
* up Function and PWM Soft Switching Phase Transition
* Soft PWM Duty Cycle Transitions

LV88554 Applications

* PC & Computing Equipment
* Refrigerator
* Games LV88551, 552, 553, 554 COMPARISON TABLE Loop Gain Rotation Signal LV88551JA/R Normal FG LV88552JA/R Normal RD LV88553JA/R Low FG LV88554JA/R Low RD www. onsemi. com MARKING DIAGRAMS ON XXXXXXX ALYWG SSOP20J CASE

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LV88554, LV88551. Please refer to the document for exact specifications by model.

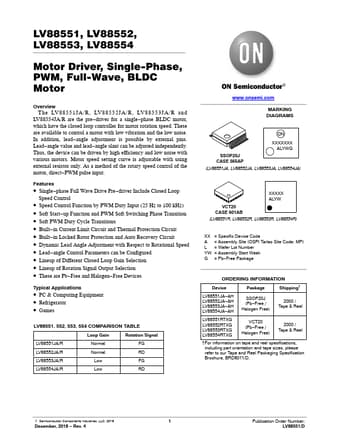

datasheet Preview Page 2 datasheet Preview Page 3
