LV8827LFQA - PWM Driver

ON Semiconductor

📥 Download Datasheet

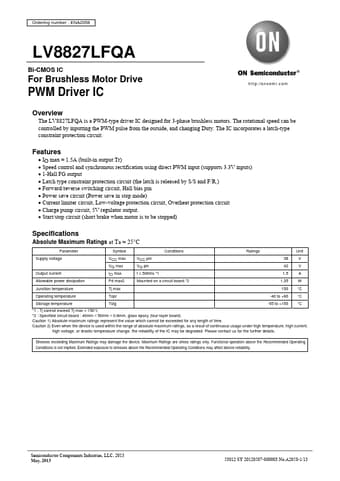

LV8827LFQA Datasheet Preview — Preview of LV8827LFQA PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LV8827LFQA
Manufacturer	ON Semiconductor
File Size	222.75 KB
Description	PWM Driver
Datasheet	LV8827LFQA-ONSemiconductor.pdf

LV8827LFQA Product details

Features

IO max = 1.5A (built-in output Tr).
Speed control and synchronous rectification using direct PWM input (supports 3.3V inputs).
1-Hall FG output.
Latch type constraint protection circuit (the latch is released by S/S and F/R. ).
Forward/reverse switching circuit, Hall bias pin.
Power save circuit (Power save in stop mode).
Current limiter circuit, Low-voltage protection circuit, Overheat protection circuit.
Charge pump circui.
