MAX6501 - Ultra Small Temperature Switch

Description

Ground.

Ground both pins together close to the chip.

Pin 2 provides the lowest thermal resistance to the die.

Features

  • 5-Pin SOT-23A.
  • Factory-Programmed Thresholds from +45°C to +115°C in 10°C Increments.
  • Pin-Selectable +2°C or +10°C Hysteresis.
  • "0.5°C (Typ) Threshold Accuracy Over Full Temperature Range.
  • No External Components Required.
  • 17 µA Supply Current Typical.

📥 Download Datasheet

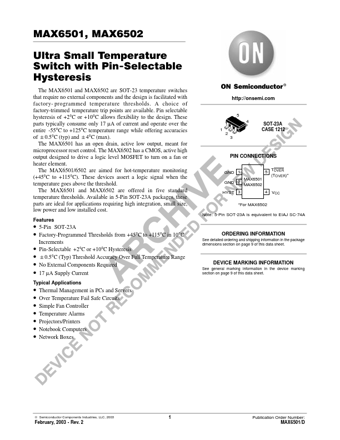

Datasheet preview – MAX6501

Datasheet Details

Part number MAX6501
Manufacturer ON Semiconductor
File Size 120.20 KB
Description Ultra Small Temperature Switch
Datasheet download datasheet MAX6501 Datasheet
Additional preview pages of the MAX6501 datasheet.

📁 Similar Datasheet

  • MAX6501 - Low-Cost / +2.7V to +5.5V / Micropower Temperature Switches (Maxim)
  • MAX6502 - Low-Cost / +2.7V to +5.5V / Micropower Temperature Switches (Maxim)
  • MAX6503 - Low-Cost / +2.7V to +5.5V / Micropower Temperature Switches (Maxim)
  • MAX6504 - Low-Cost / +2.7V to +5.5V / Micropower Temperature Switches (Maxim)
  • MAX6505 - Dual Trip SOT Temperature Switches (Maxim)
  • MAX6506 - Dual Trip SOT Temperature Switches (Maxim Integrated)
  • MAX6507 - Dual Trip SOT Temperature Switches (Maxim Integrated)
  • MAX6508 - Dual Trip SOT Temperature Switches (Maxim Integrated)
  • MAX6509 - Resistor-Programmable SOT Temperature Switches (Maxim)
  • MAX651 - Step-Down DC-DC Controllers (Maxim)
Other Datasheets by ON Semiconductor
  • MAX6502 - Ultra Small Temperature Switch
  • MAX1617 - SMBus Temperature Sensor with Internal and External Diode Input
  • MAX1720 - Switched Capacitor Voltage Inverter
  • MAX707 - (MAX707 / MAX708) UP Supervisory Circuits
  • MAX708 - (MAX707 / MAX708) UP Supervisory Circuits
  • MAX803 - Very Low Supply Current 3-Pin Microprocessor Reset Monitor
  • MAX803 - Very Low Supply Current 3-Pin Microprocessor Reset Monitor
  • MAX809 - Very Low Supply Current 3-Pin Microprocessor Reset Monitors

Full PDF Text Transcription

Click to expand full text
MAX6501, MAX6502 Ultra Small Temperature Switch with Pin−Selectable Hysteresis The MAX6501 and MAX6502 are SOT-23 temperature switches that require no external components and the design is facilitated with factory- programmed temperature thresholds. A choice of factory-trimmed temperature trip points are available. Pin selectable hysteresis of +2°C or +10°C allows flexibility to the design. These parts typically consume only 17 µA of current and operate over the entire -55°C to +125°C temperature range while offering accuracies of "0.5°C (typ) and "4°C (max). The MAX6501 has an open drain, active low output, meant for microprocessor reset control. The MAX6502 has a CMOS, active high output designed to drive a logic level MOSFET to turn on a fan or heater element.
