MBR10H100CT SWITCHMODE Power Rectifier

MBR10H100CT Description

MBR10H100CT SWITCHMODE] Power Rectifier 100 V, 10 A .

MBR10H100CT Features

* Low Forward Voltage: 0.61 V @ 125°C
* Low Power Loss/High Efficiency
* High Surge Capacity
* 175°C Operating Junction Temperature
* 10 A Total (5.0 A Per Diode Leg)
* Guard
* Ring for Stress Protection
* Pb
* Free Package is Avail

MBR10H100CT Applications

* Power Supply
* Output Rectification
* Power Management
* Instrumentation Mechanical Characteristics:
* Case: Epoxy, Molded
* Epoxy Meets UL 94 V
* 0 @ 0.125 in
* Weight: 1.9 Grams (Approximately)
* Finish: All External Surfaces

📥 Download Datasheet

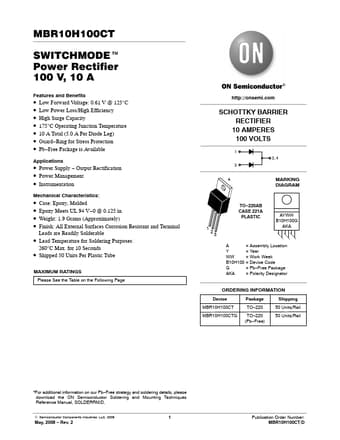

Preview of MBR10H100CT PDF
datasheet Preview Page 2 datasheet Preview Page 3
