MBR10H150CT Dual Common Cathode High Voltage Schottky Rectifier

MBR10H150CT Description

MBR10H150CT, MBRF10H150CT, SB10H150CT-1 www.vishay.com Vishay General Semiconductor Dual Common Cathode High Voltage Schottky Rectifier Low Leakage.

MBR10H150CT Features

* Power pack
* Guardring for overvoltage protection
* Lower power losses, high efficiency
* Low forward voltage drop
* High forward surge capability
* High frequency operation
* Solder dip 275 °C max.10 s, per JESD 22-B106
* Material ca

MBR10H150CT Applications

* For use in high frequency inverters, freewheeling, and polarity protection application. MECHANICAL DATA Case: TO-220AB, ITO-220AB, TO-262AA Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Terminals: Matte tin plated leads, solderable per J-STD-002

📥 Download Datasheet

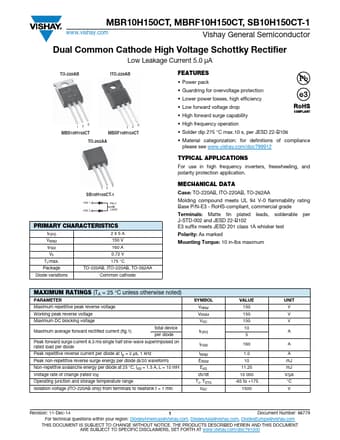

Preview of MBR10H150CT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR10H150CT
Manufacturer
Vishay ↗
File Size
96.69 KB
Datasheet
MBR10H150CT-Vishay.pdf
Description
Dual Common Cathode High Voltage Schottky Rectifier
