MBR10H200DC - ULTRA LOW IR SCHOTTKY BARRIER RECTIFIERS

Product Overview

Pan Jit International

📥 Download Datasheet

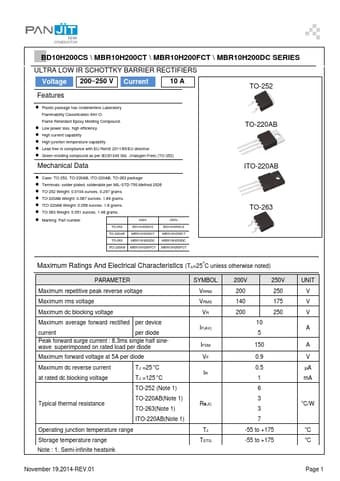

MBR10H200DC ULTRA LOW IR SCHOTTKY BARRIER RECTIFIERS by Pan Jit International - Datasheet Preview — Datasheet preview – MBR10H200DC

Datasheet Details

Part number	MBR10H200DC
Manufacturer	Pan Jit International
File Size	405.44 KB
Description	ULTRA LOW IR SCHOTTKY BARRIER RECTIFIERS
Datasheet	MBR10H200DC Datasheet
Note	This datasheet PDF includes multiple part numbers: MBR10H200DC, MBR10H200CT. Please refer to the document for exact specifications by model.
Additional preview pages of the MBR10H200DC datasheet.

Product details

Features

TO-252.
Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound.
Low power loss, high efficiency.
High current capability.
High junction temperature capability.
Lead free in compliance with EU RoHS 2011/65/EU directive.
Green molding compound as per IEC61249 Std. . (Halogen Free) (TO-252) Mechanical Data.
Case: TO-252, TO-220AB, ITO-220AB, TO-263 package.
Terminals: solder plated, solderable.
