MBR40250T, MBRF40250T - SWITCHMODE Schottky Power Rectifier

MBR40250T Description

www.DataSheet4U.com MBR40250, MBR40250T, MBRF40250T 250 V, 40 A SWITCHMODEt Schottky Power Rectifier .

MBR40250T Features

* http://onsemi. com 250 V Blocking Voltage Low Forward Voltage Drop, VF = 0.86 V Soft Recovery Characteristic, TRR < 35 ns Low Reverse Current, IR = 30 mA Stable Switching Performance Over Temperature SCHOTTKY RECTIFIER 40 AMPERES, 250 VOLTS 4 TO

MBR40250T Applications

* Power Supply Power Management Automotive Instrumentation AYWW B40250TG AKA Mechanical Characteristics
* Case: Epoxy, Molded
* Weight: 1.9 grams (approximately)
* Finish: All External Surfaces Corrosion Resistant and Terminal
* Leads are Readily Solderabl

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR40250T, MBRF40250T. Please refer to the document for exact specifications by model.

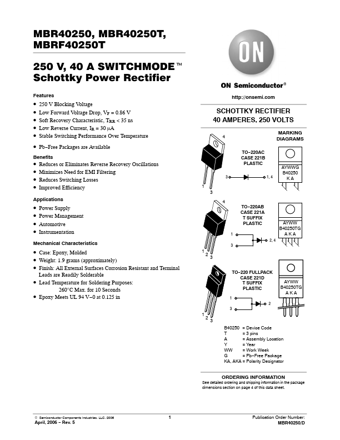

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR40250T, MBRF40250T
Manufacturer
ON Semiconductor ↗
File Size
137.20 KB
Datasheet
MBRF40250T_ONSemiconductor.pdf
Description
SWITCHMODE Schottky Power Rectifier
Note
This datasheet PDF includes multiple part numbers: MBR40250T, MBRF40250T.
Please refer to the document for exact specifications by model.
