MBR40250TG, MBR40250G, Switch-mode Schottky Power Rectifier

Switch-mode Schottky Power Rectifier 250 V, 40 A MBR40250G, MBR40250TG, MBRF40250TG, MBRB40250TG .

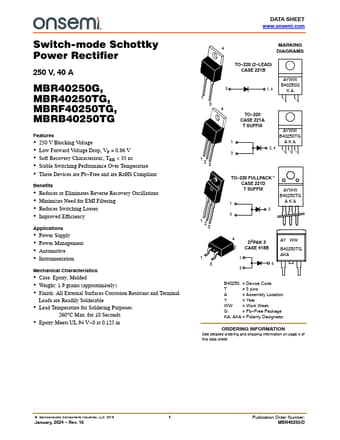

datasheet Preview Page 1 from Datasheet4u.com

MBR40250G-ONSemiconductor.pdf

MBR40250TG Datasheet Preview — This datasheet PDF includes multiple part numbers: MBR40250TG, MBR40250G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBR40250TG, MBR40250G

Manufacturer:

ON Semiconductor ↗

File Size:

391.68 KB

Description:

Switch-mode Schottky Power Rectifier

Note:

This datasheet PDF includes multiple part numbers: MBR40250TG, MBR40250G.
Please refer to the document for exact specifications by model.

Features

* 250 V Blocking Voltage
* Low Forward Voltage Drop, VF = 0.86 V
* Soft Recovery Characteristic, TRR < 35 ns
* Stable Switching Performance Over Temperature
* These Devices are Pb
* Free and are RoHS Compliant Benefits
* Reduces or Eliminates Reverse Recovery Oscillatio

Applications

* Power Supply
* Power Management
* Automotive
* Instrumentation Mechanical Characteristics
* Case: Epoxy, Molded
* Weight: 1.9 grams (approximately)
* Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
* Lead Temperature for S
