MBR8170TFS, Schottky Barrier Rectifier

Schottky Barrier Rectifier MBR8170TFS This Schottky rectifier is high performance device in m8 *FL package.The lower forward voltage, less le.

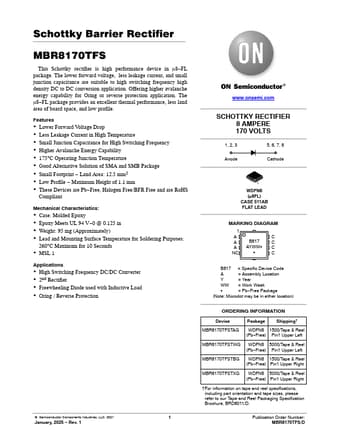

datasheet Preview Page 1 from Datasheet4u.com

MBR8170TFS-ONSemiconductor.pdf

MBR8170TFS Datasheet Preview — Preview of MBR8170TFS PDF

Datasheet Details

Part number:

MBR8170TFS

Manufacturer:

ON Semiconductor ↗

File Size:

224.86 KB

Description:

Schottky Barrier Rectifier

Features

* Lower Forward Voltage Drop
* Less Leakage Current in High Temperature
* Small Junction Capacitance for High Switching Frequency
* Higher Avalanche Energy Capability
* 175C Operating Junction Temperature
* Good Alternative Solution of SMA and SMB Package
* Small Footpri

Applications

* High Switching Frequency DC/DC Converter
* 2nd Rectifier
* Freewheeling Diode used with Inductive Load
* Oring / Reverse Protection  Semiconductor Components Industries, LLC, 2021 1 January, 2025
* Rev. 1 www. onsemi. com SCHOTTKY RECTIFIER 8 AMPERE 170 VOLTS 1, 2, 3
