MC100LVEP111 Datasheet - ON Semiconductor

2.5V / 3.3V 2:1:10 Differential ECL/PECL/HSTL Clock Driver

MC100LVEP111 General Description

The MC100LVEP111 is a low skew 2:1:10 differential driver, designed with clock distribution in mind, accepting two clock sources into an input multiplexer. The PECL input signals can be either differential or single *ended (if the VBB output is used). HSTL inputs can be used when the LVEP111 .

MC100LVEP111 Datasheet (173.49 KB)

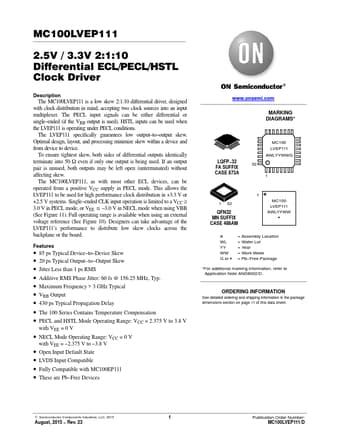

Preview of MC100LVEP111 PDF

Datasheet Details

Part number:

MC100LVEP111

Manufacturer:

ON Semiconductor ↗

File Size:

173.49 KB

Description:

2.5v / 3.3v 2:1:10 differential ecl/pecl/hstl clock driver.
