MC100LVEP14 Datasheet - ON Semiconductor

2.5V / 3.3V 1:5 Differential ECL/PECL/HSTL Clock Driver

MC100LVEP14 General Description

The MC100LVEP14 is a low skew 1 *to *5 differential driver, designed with clock distribution in mind, accepting two clock sources into an input multiplexer. The ECL/PECL input signals can be either differential or single *ended (if the VBB output is used). HSTL inputs can be use.

MC100LVEP14 Datasheet (84.26 KB)

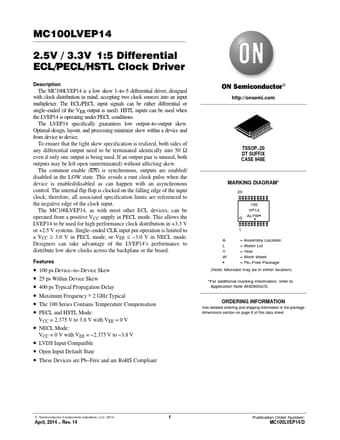

Preview of MC100LVEP14 PDF

Datasheet Details

Part number:

MC100LVEP14

Manufacturer:

ON Semiconductor ↗

File Size:

84.26 KB

Description:

2.5v / 3.3v 1:5 differential ecl/pecl/hstl clock driver.
