MC33163 Datasheet - ON Semiconductor

MC33163_ONSemiconductor.pdf

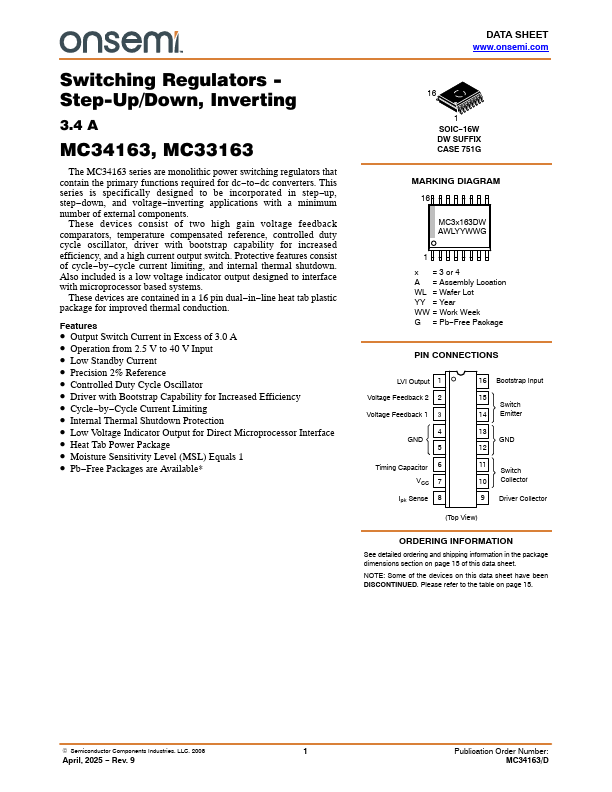

Preview of MC33163 PDF

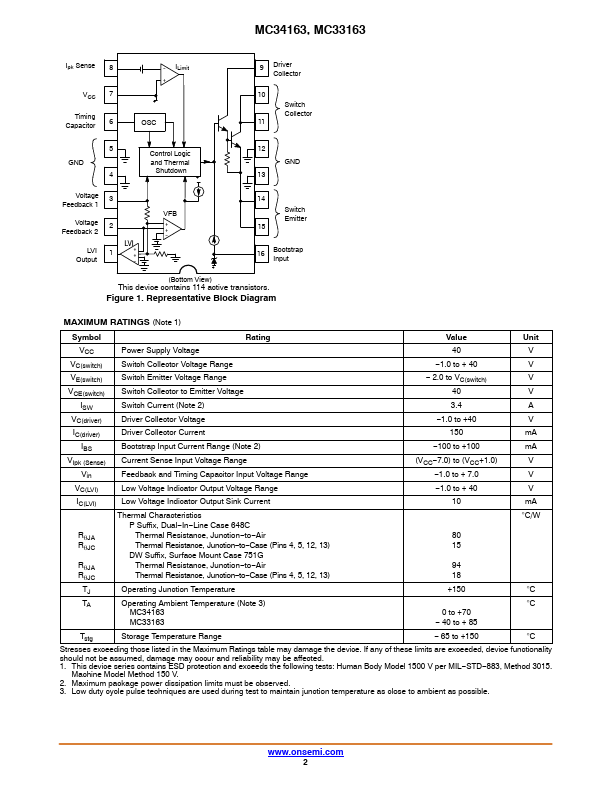

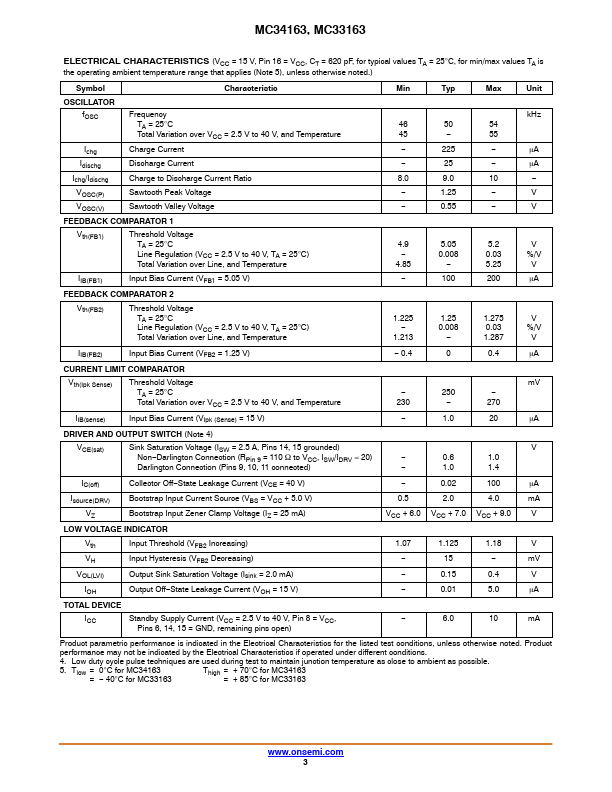

MC33163 Datasheet Preview Page 2 MC33163 Datasheet Preview Page 3

Datasheet Details

Part number:

MC33163

Manufacturer:

ON Semiconductor ↗

File Size:

323.03 KB

Description:

Step-up/down/inverting switching regulators.

MC33163, Step-Up/Down/Inverting Switching Regulators

Switching Regulators Step-Up/Down, Inverting 3.4 A MC34163, MC33163 The MC34163 series are monolithic power switching regulators that contain the primary functions required for dc to dc converters.

This series is specifically designed to be incorporated in step up, step down, and voltage inverting applications with a minimum number of external components.

These devices consist of two high gain voltage feedback comparators, temperature compensated reference

MC33163 Features

* consist of cycle

* by

* cycle current limiting, and internal thermal shutdown. Also included is a low voltage indicator output designed to interface with microprocessor based systems. These devices are contained in a 16 pin dual

* in

* line heat tab plastic package for improv
