MC33170 RF Amplifier Companion Chip for Dual-Band Cellular Subscriber Terminal

Pin No. 1 2 3 4 5 6 7 8 9 Pin Name Function Description Band Selection Tx Enable Selects the transmit band Starts the power A level high on this input selects the DCS chain. A zero selects the GSM chain. A level high on this pin enables the DCS/GSM chain and establishes a low *resistance link.
MC33170 RF Amplifier Companion Chip for Dual-Band Cellular Subscriber Terminal The MC33170 is a complete solution for drain modulated dual band GSM 900MHz and DCS 1800MHz Power Amplifiers. Thanks to its internal decoder, the MC33170 drastically simplifies the interface between the PAs and the baseband logic section, providing an immediate gain in part count but also in occupied copper area. The device is also ready for 1V platforms since it accepts logic high control signals down.

MC33170 Datasheet (231.68 KB)

Preview of MC33170 PDF

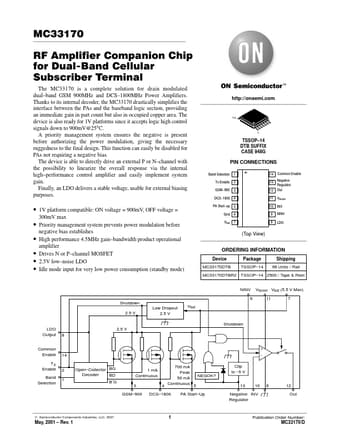

MC33170 Datasheet Preview Page 2 MC33170 Datasheet Preview Page 3

Datasheet Details

Part number:

MC33170

Manufacturer:

ON Semiconductor ↗

File Size:

231.68 KB

Description:

Rf amplifier companion chip for dual-band cellular subscriber terminal.
