MC33172

Low power dual bipolar operational amplifiers

MC33172 Features

* Good consumption/speed ratio: only 200 µA for 2.1 MHz, 2 V/µs

* Single (or dual) supply operation from +4 V to +44 V (±2 V to ±22V)

* Wide input common mode mode voltage range including VCC-

* Low level output voltage close to VCC- : 100 mV typical

* Pin-to-pin compatible with

MC33172 General Description

The MC3x172 series are dual bipolar operational amplifiers offering both low consumption (200 µA/Amp) and good speed (2.1 MHz, 2 V/µs). Moreover, the input common mode range extends down to the lower supply rail, allowing single supply operation from +4 V to +44 V. N DIP8 (Plastic package) D SO-8 .

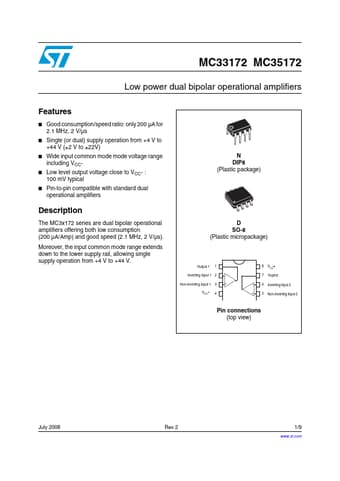

MC33172 Datasheet (137.49 KB)

Preview of MC33172 PDF

Datasheet Details

Part number:

MC33172

Manufacturer:

STMicroelectronics ↗

File Size:

137.49 KB

Description:

Low power dual bipolar operational amplifiers.
