MC33174

LOW POWER QUAD BIPOLAR OPERATIONAL AMPLIFIERS

MC33174 General Description

The MC3x174 series are quad bipolar operational amplifier offering both low consumption (200µA) and good speed (2.1MHz, 2V/µs). Moreover the Input Common Mode Range extends down to the lower supply rail, allowing single supply operation from +4V to +44V. ORDER CODE Output 1 1 14 Output 4 + + 13 Inve.

MC33174 Datasheet (83.40 KB)

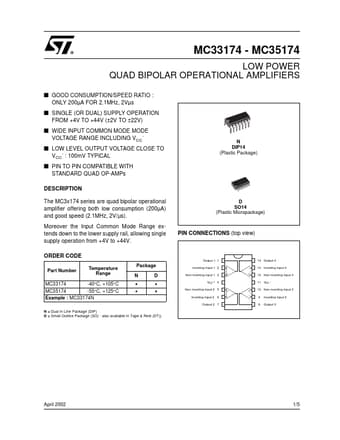

Preview of MC33174 PDF

Datasheet Details

Part number:

MC33174

Manufacturer:

STMicroelectronics ↗

File Size:

83.40 KB

Description:

Low power quad bipolar operational amplifiers.
MC33174 - MC35174 LOW POWER QUAD BIPOLAR OPERATIONAL AMPLIFIERS s GOOD CONSUMPTION/SPEED RATIO : ONLY 200µA FOR 2.1MHz, 2Vµs s SINGLE (OR DUAL) SUPPL.
