MC33179, MC33178 Low Noise Operational Amplifiers

MC33179 Description

DATA SHEET www.onsemi.com Low Power, Low Noise Operational Amplifiers MC33178, MC33179 The MC33178/9 series is a family of high quality monolithic am.

MC33179 Features

* 600 W Output Drive Capability
* Large Output Voltage Swing
* Low Offset Voltage: 0.15 mV (Mean)
* Low T. C. of Input Offset Voltage: 2.0 mV/°C
* Low Total Harmonic Distortion: 0.0024% (@ 1.0 kHz w/600 W Load)
* High Gain Bandwidth: 5.0 MHz
* H

MC33179 Applications

* This device family incorporates the use of high frequency PNP input transistors to produce amplifiers exhibiting low input offset voltage, noise and distortion. In addition, the amplifier provides high output current drive capability while consuming only 420 mA of drain current per amplifier. The N

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MC33179, MC33178. Please refer to the document for exact specifications by model.

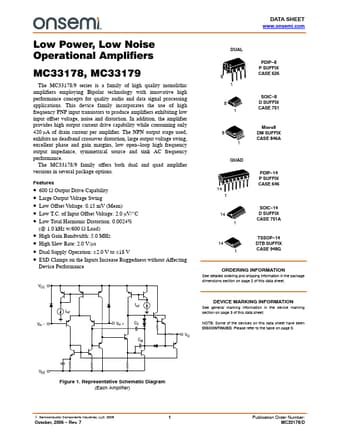

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC33179, MC33178
Manufacturer
ON Semiconductor ↗
File Size
556.41 KB
Datasheet
MC33178_ONSemiconductor.pdf
Description
Low Noise Operational Amplifiers
Note
This datasheet PDF includes multiple part numbers: MC33179, MC33178.
Please refer to the document for exact specifications by model.
