MC33164 - Micropower Undervoltage Sensing Circuits

Product Overview

ON Semiconductor

📥 Download Datasheet

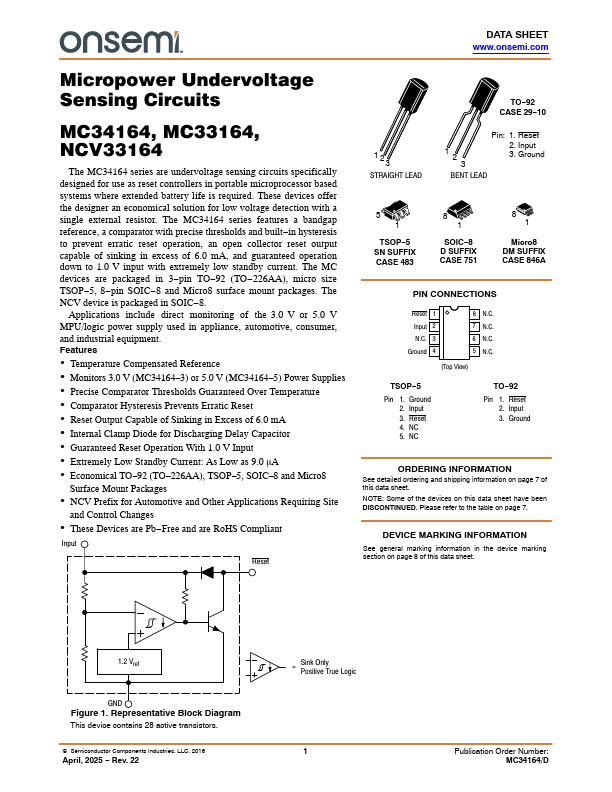

MC33164 Micropower Undervoltage Sensing Circuits by ON Semiconductor - Datasheet Preview — Datasheet preview – MC33164

Datasheet Details

Part number	MC33164
Manufacturer	ON Semiconductor
File Size	406.05 KB
Description	Micropower Undervoltage Sensing Circuits
Datasheet	MC33164 Datasheet
Note	This datasheet PDF includes multiple part numbers: MC33164, MC34164. Please refer to the document for exact specifications by model.

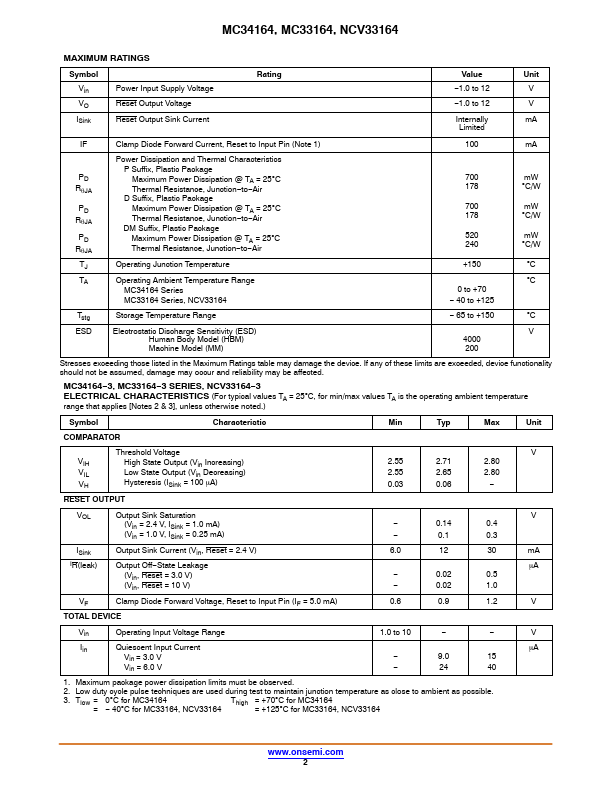

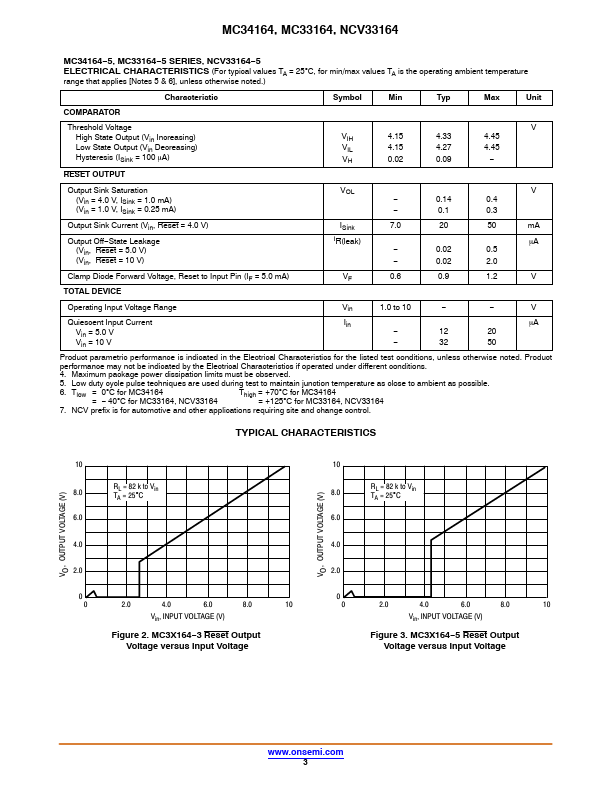

Additional preview pages of the MC33164 datasheet.

Product details

Features

a bandgap reference, a comparator with precise thresholds and built.
in hysteresis to prevent erratic reset operation, an open collector reset output capable of sinking in excess of 6.0 mA, and guaranteed operation down to 1.0 V input with extremely low standby current. The MC devices are packaged in 3.
pin TO.
92 (TO.
226AA), micro size TSOP.
5, 8.
pin SOIC.
8 and Micro8 surface mount packages. The NCV device is packaged in SOIC.
8. Applic.
