MC44604 - PWM Controller

MC44604 Description

MC44604 High Safety Pulsed Mode Standby GreenLinet PWM Controller The MC44604 is an enhanced high performance controller that is specifically designe.

MC44604 Features

* (foldback, overvoltage detection, soft
* start, accurate demagnetization detection). In addition, the MC44604 offers a new efficient way to reduce the standby operating power by means of a so
* called pulsed mode standby operation of the converter, significantly reducing the converter co

MC44604 Applications

* Its high current totem pole output is ideally suited for driving a power MOSFET. The MC44604 is an evolution of the MC44603A. Like the MC44603A, the MC44604 has been optimized to operate with universal ac mains voltage from 80 V to 280 V. It also offers enhanced safety and reliable power management

📥 Download Datasheet

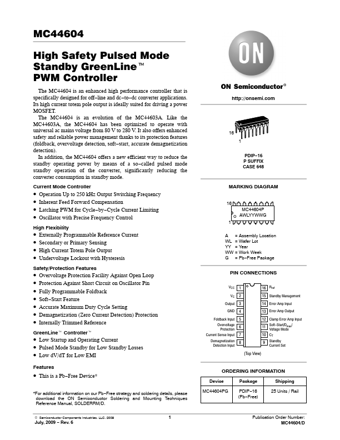

Preview of MC44604 PDF
datasheet Preview Page 2 datasheet Preview Page 3
