MC4401 - P-Channel MOSFET

MC4401 Description

Freescale AO4401/ MC4401 P-Channel 30-V (D-S) MOSFET Key .

MC4401 Features

* Low rDS(on) trench technology
* Low thermal impedance

MC4401 Applications

* White LED boost converters
* Automotive Systems
* Industrial DC/DC Conversion Circuits PRODUCT SUMMARY rDS(on) (mΩ) 19 @ VGS = -10V 30 @ VGS = -4.5V VDS (V) -30 ID(A) -9.5 -7.5 ABSOLUTE MAXIMUM RATINGS (TA = 25°C UNLESS OTHERWISE NOTED) Parameter Symbol Limit VDS Drain-

📥 Download Datasheet

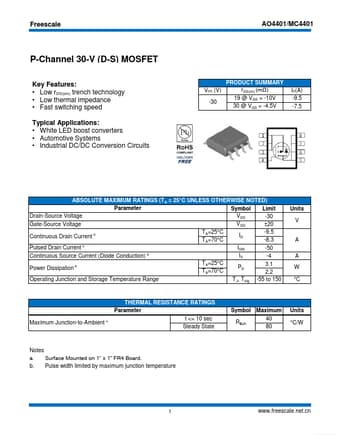

Preview of MC4401 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC4401
Manufacturer
Freescale
File Size
525.86 KB
Datasheet
MC4401_Freescale.pdf
Description
P-Channel MOSFET
