MC4403 - P-Channel MOSFET

MC4403 Description

Freescale P-Channel 20-V (D-S) MOSFET These miniature surface mount MOSFETs utilize a high cell density trench process to provide low rDS(on) and to e.

MC4403 Applications

* are DC-DC converters and power management in portable and battery-powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones. AO4403/ MC4403 PRODUCT SUMMARY VDS (V) rDS(on) m(Ω) 60 @ VGS = -4.5V -20 80 @ VGS = -2.5V 150 @ VGS = -1.8V ID (A) -8.3 -6.7 -4.5

📥 Download Datasheet

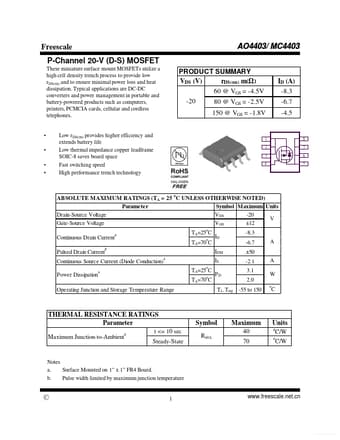

Preview of MC4403 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC4403
Manufacturer
Freescale
File Size
212.33 KB
Datasheet
MC4403_Freescale.pdf
Description
P-Channel MOSFET
