MC4405 - P-Channel MOSFET

MC4405 Description

Freescale AO4405/ MC4405 P-Channel 30-V (D-S) MOSFET Key .

MC4405 Features

* Low rDS(on) trench technology
* Low thermal impedance

MC4405 Applications

* White LED boost converters
* Automotive Systems
* Industrial DC/DC Conversion Circuits PRODUCT SUMMARY rDS(on) (mΩ) 49 @ VGS = -10V 75 @ VGS = -4.5V VDS (V) -30 ID(A) -6.5 -5.3 ABSOLUTE MAXIMUM RATINGS (TA = 25°C UNLESS OTHERWISE NOTED) Parameter Symbol Limit VDS Drain-

📥 Download Datasheet

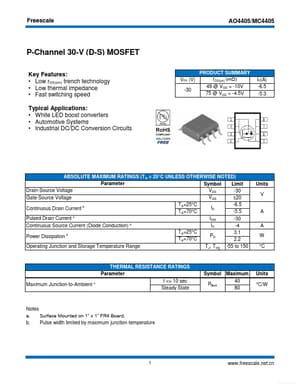

Preview of MC4405 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC4405
Manufacturer
Freescale
File Size
510.63 KB
Datasheet
MC4405_Freescale.pdf
Description
P-Channel MOSFET
