MC74HC4053A Analog Multiplexers/Demultiplexers

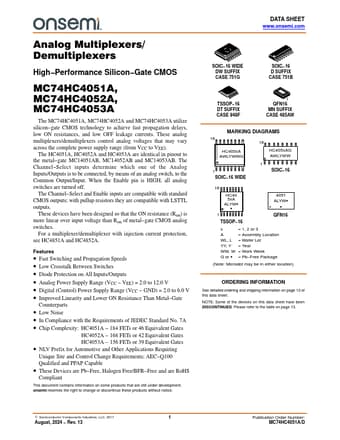

DATA SHEET www.onsemi.com Analog Multiplexers/ Demultiplexers High Performance Silicon Gate CMOS MC74HC4051A, MC74HC4052A, MC74HC4053A The MC74HC4051A, MC74HC4052A and MC74HC4053A utilize silicon gate CMOS technology to achieve fast propagation delays, low ON resistances, and low OFF leakage currents. These analog multiplexers/demultiplexers control analog voltages that may vary across the complete power supply range (from VCC to VEE). The HC4051A, HC4052A and HC4053A ar.

MC74HC4053A Features

* Fast Switching and Propagation Speeds

* Low Crosstalk Between Switches

* Diode Protection on All Inputs/Outputs

* Analog Power Supply Range (VCC

* VEE) = 2.0 to 12.0 V

* Digital (Control) Power Supply Range (VCC

* GND) = 2.0 to 6.0 V
