MC74HC4066A Quad Analog Switch/Multiplexer/Demultiplexer

MC74HC4066A Description

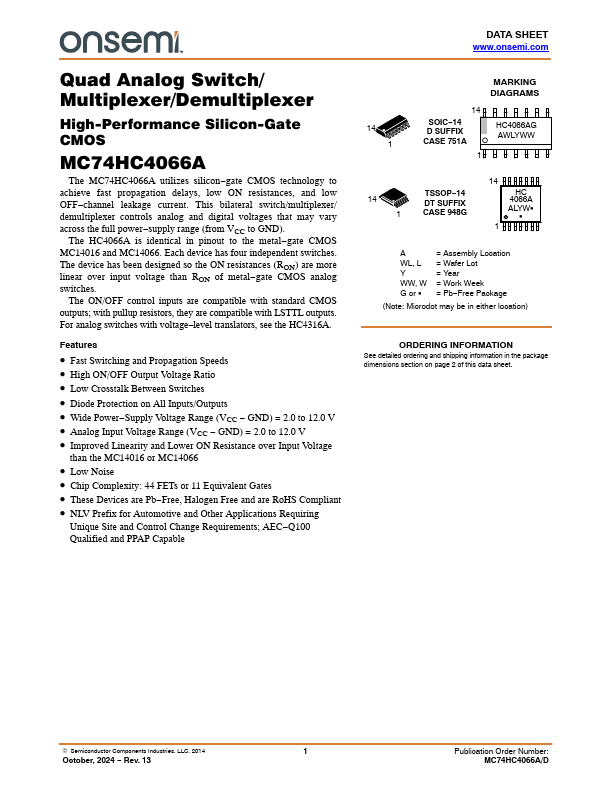

DATA SHEET www.onsemi.com Quad Analog Switch/ Multiplexer/Demultiplexer High-Performance Silicon-Gate CMOS MC74HC4066A The MC74HC4066A utilizes silic.

MC74HC4066A Features

* Fast Switching and Propagation Speeds
* High ON/OFF Output Voltage Ratio
* Low Crosstalk Between Switches
* Diode Protection on All Inputs/Outputs
* Wide Power
* Supply Voltage Range (VCC
* GND) = 2.0 to 12.0 V
* Analog Input Voltage Ra

MC74HC4066A Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q100 Qualified and PPAP Capable 14 1 MARKING DIAGRAMS 14 SOIC
* 14 D SUFFIX CASE 751A 1 HC4066AG AWLYWW 14 1 TSSOP
* 14 DT SUFFIX CASE 948G 14 HC 4066A ALYWG G 1 A WL, L Y WW, W G or G = Assembly Location = Wafer

📥 Download Datasheet

Preview of MC74HC4066A PDF

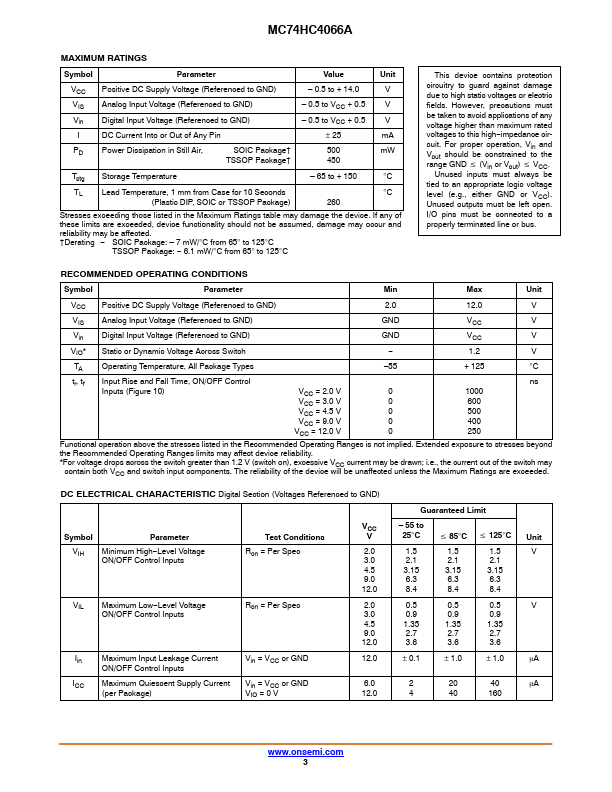

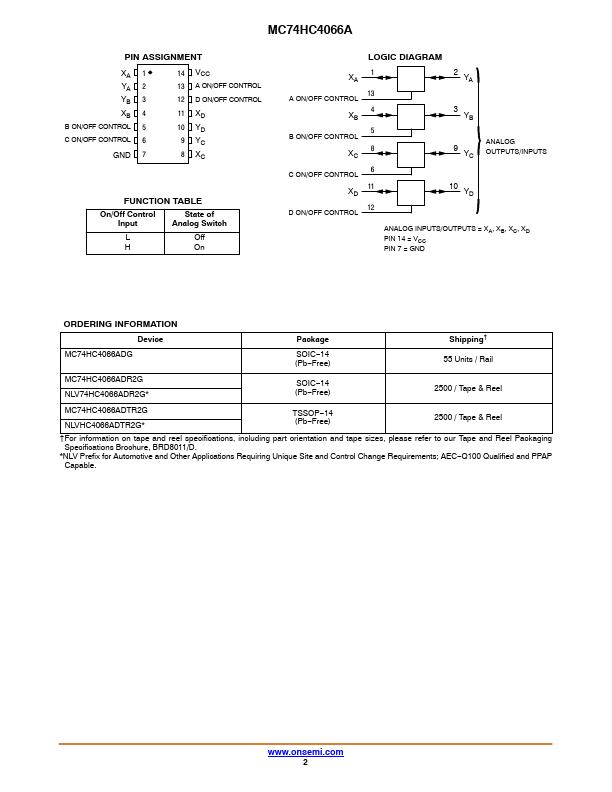

datasheet Preview Page 2 datasheet Preview Page 3
