MM74HC244

Octal 3-STATE Buffer

ON Semiconductor

MM74HC244 Features

* Typical Propagation Delay: 14 ns

* 3

* STATE Outputs for Connection to System Buses

* Wide Power Supply Range: 2

* 6 V

* Low Quiescent Supply Current: 160 mA

* Output Current: 6 mA

* These are Pb

* Free Devices 2A4 2Y4 2A3 2Y3 2A2 2Y2 2A1 2Y1 2G

MM74HC244 General Description

The MM74HC244 is a non

*inverting buffer and has two active low enables (1G and 2G); each enable independently controls 4 buffers. This device does not have Schmitt trigger inputs. These 3

*STATE buffers utilize advanced silicon

*gate CMOS technology and are general purpose high.

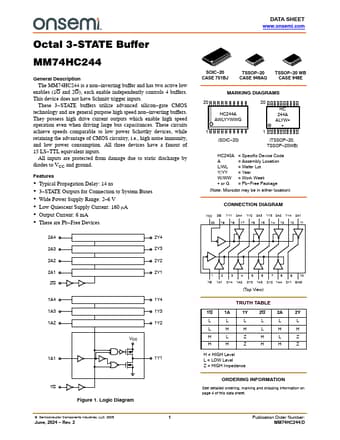

MM74HC244 Datasheet (246.20 KB)

MM74HC244 Datasheet Preview — Preview of MM74HC244 PDF

Datasheet Details

Part number:

MM74HC244

Manufacturer:

ON Semiconductor ↗

File Size:

246.20 KB

Description:

Octal 3-state buffer.
