MMBT3906 - PNP General-Purpose Amplifier

MMBT3906 Description

2N3906 / MMBT3906 / PZT3906 * PNP General-Purpose Amplifier 2N3906 / MMBT3906 / PZT3906 PNP General-Purpose Amplifier .
This device is designed for general-purpose amplifier and switching applications at collector currents of 10 mA to 100 mA.

MMBT3906 Applications

* at collector currents of 10 mA to 100 mA. 2N3906 EBC TO-92 MMBT3906 C SOT-23 Mark:2A E B PZT3906 C SOT-223 E C B Ordering Information Part Number 2N3906BU 2N3906TA 2N3906TAR 2N3906TF 2N3906TFR MMBT3906 PZT3906 Marking 2N3906 2N3906 2N3906 2N3906 2N3906 2A 3906 Package TO-92 3L TO-92 3L

📥 Download Datasheet

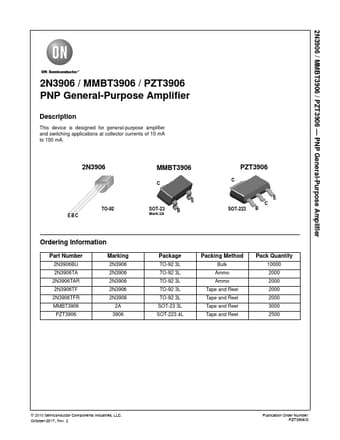

Preview of MMBT3906 PDF
datasheet Preview Page 2 datasheet Preview Page 3
