MMPQ3906 Datasheet (141.21 KB)
MMPQ3906
141.21 KB
Quad amplifier/switch transistor.
MMPQ3906
Preferred Device
Quad Amplifier/Switch Transistor
PNP Silicon
MAXIMUM RATINGS Rating
Collector
*Emitter Voltage Collector
*B.
📁 Related Datasheet
MMPQ3904 - Quad Amplifier/Switch Transistor
(Motorola)
MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Quad Amplifier/Switch
Transistor
NPN Silicon
1 16 2 15 3 14 4 13 5 12 6 11 7 10 89
MAXIMUM RATINGS
Rating
S.
MMPQ3904 - NPN Multi-Chip General-Purpose Amplifier
(ON Semiconductor)
NPN Multi-Chip General-Purpose Amplifier
FMB3904, MMPQ3904
Description This device is designed as a general−purpose amplifier and switch.
The useful .
MMPQ3904 - SURFACE MOUNT NPN SILICON QUAD TRANSISTOR
(Central Corp)
MMPQ3904 SURFACE MOUNT NPN SILICON QUAD TRANSISTOR
Central
DESCRIPTION:
TM
Semiconductor Corp.
The CENTRAL SEMICONDUCTOR MMPQ3904, consisting of f.
MMPQ3904 - NPN General Purpose Amplifier
(Fairchild)
FFB3904 / FMB3904 / MMPQ3904
Discrete POWER & Signal Technologies
FFB3904
E2 B2 C1
FMB3904
C2 E1 C1 E1 C2
MMPQ3904
E2 B2 E3 B3 E4 B4
B1
B1
pin #.
MMPQ3904 - NPN General Purpose Amplifier
(National Semiconductor)
2N3904 / MMBT3904 / MMPQ3904 / PZT3904
N
2N3904
C C B
Discrete Power & Signal Technologies
MMBT3904
E
TO-92
E
SOT-23
Mark: 1A
B
MMPQ3904
B E B.
MMPQ3906 - Quad Amplifier/Switch Transistor
(Motorola)
MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Quad Amplifier/Switch
Transistor
PNP Silicon
1 16 2 15 3 14 4 13 5 12 6 11 7 10 89
MAXIMUM RATINGS
Rating
S.
MMPQ3906 - SURFACE MOUNT PNP SILICON QUAD TRANSISTOR
(Central Corp)
MMPQ3906 SURFACE MOUNT PNP SILICON QUAD TRANSISTOR
Central
DESCRIPTION:
TM
Semiconductor Corp.
The CENTRAL SEMICONDUCTOR MMPQ3906, consisting of f.

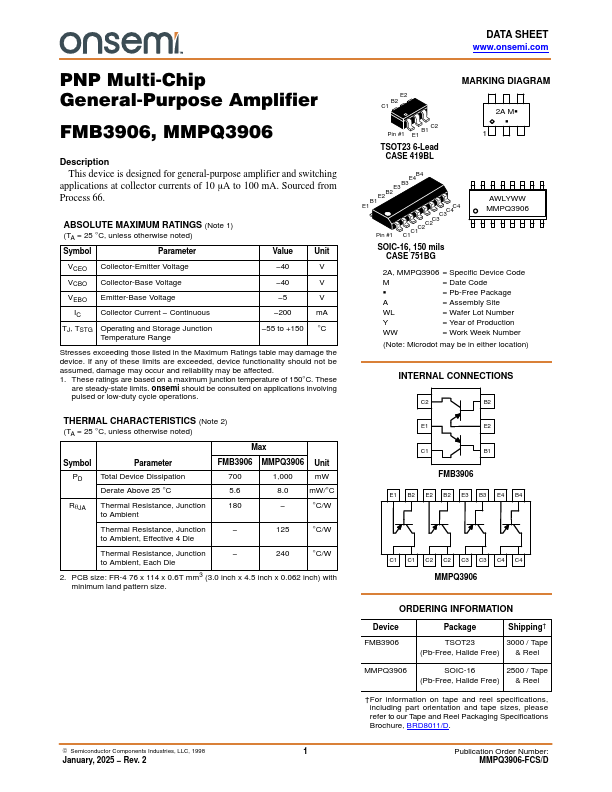

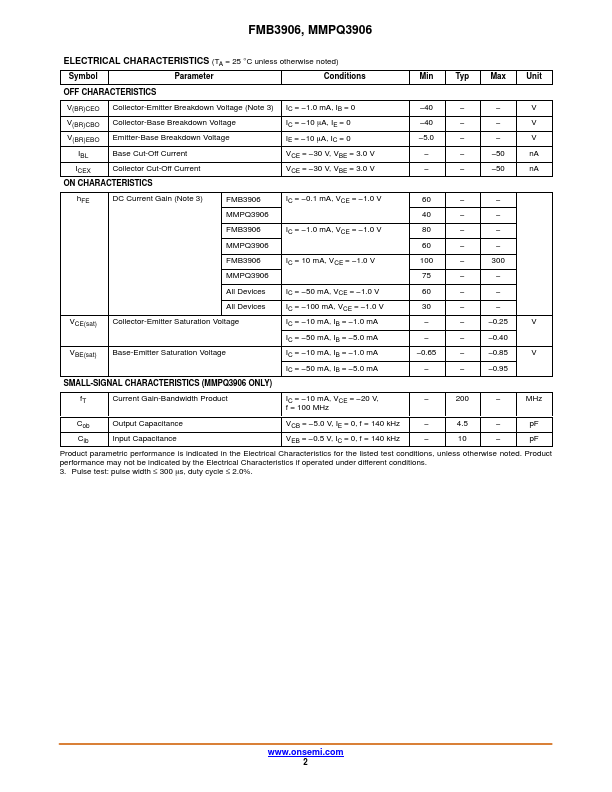

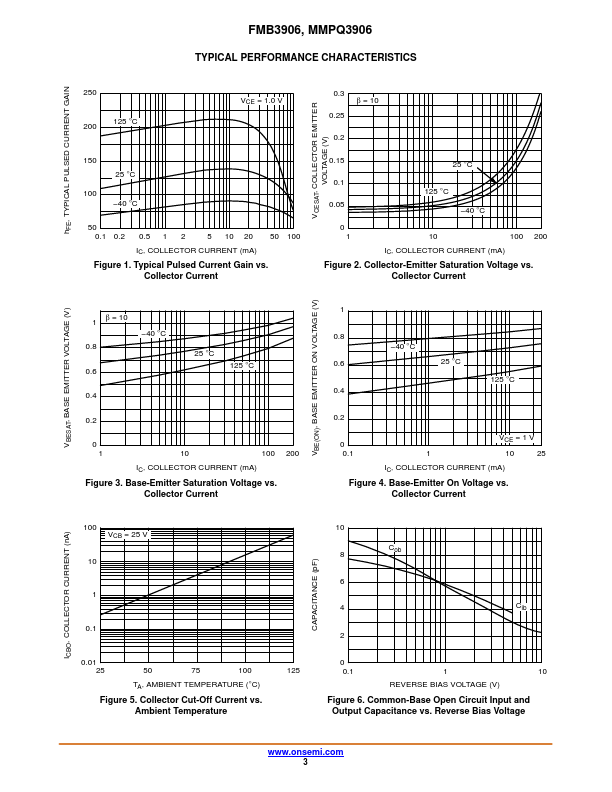

MMPQ3906 - PNP Multi-Chip General Purpose Amplifier
(Fairchild)
FFB3906 / FMB3906 / MMPQ3906
FFB3906
E2 B2 C1
FMB3906
C2 E1 C1 E1
MMPQ3906
E2 B2 E3 B3 E4 B4
B1
SC70-6
Mark: .2A
pin #1
C2 B1 E1
pin #1 B1
B2 E.
