MSC2295-BT1 - NPN RF Amplifier Transistors

Datasheet Summary

Features

  • Pb.
  • Free Packages are Available.

📥 Download Datasheet

Datasheet preview – MSC2295-BT1

Datasheet Details

Part number MSC2295-BT1
Manufacturer ON Semiconductor
File Size 67.28 KB
Description NPN RF Amplifier Transistors
Datasheet download datasheet MSC2295-BT1 Datasheet
Additional preview pages of the MSC2295-BT1 datasheet.

📁 Similar Datasheet

  • MSC2295-BT1 - NPN RF Amplifier Transistors (Motorola)
  • MSC2295-BT1 - NPN RF Amplifier Transistors (LRC)
  • MSC2295-BT1 - NPN RF Amplifier Transistors (ETL)
  • MSC2295-CT1 - NPN RF Amplifier Transistors (Motorola)
  • MSC2295-CT1 - NPN RF Amplifier Transistors (LRC)
  • MSC2295-CT1 - NPN RF Amplifier Transistors (ETL)
  • MSC220 - XpressFlow 2020 Ethernet Routing Switch (Zarlink Semiconductor)
  • MSC23108C - DRAM-MODULE (OKI electronic componets)
  • MSC23108CL - DRAM-MODULE (OKI electronic componets)
  • MSC23109C - DRAM-MODULE (OKI electronic componets)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text

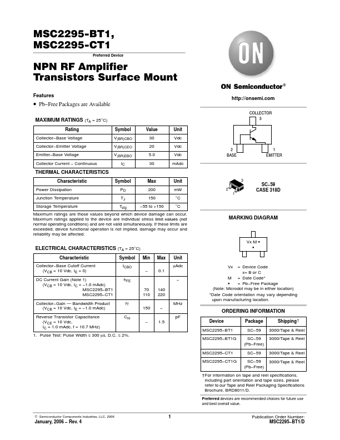

MSC2295−BT1, MSC2295−CT1 Preferred Device NPN RF Amplifier Transistors Surface Mount Features • Pb−Free Packages are Available MAXIMUM RATINGS (TA = 25°C) Rating Collector−Base Voltage Collector−Emitter Voltage Emitter−Base Voltage Collector Current − Continuous Symbol V(BR)CBO V(BR)CEO V(BR)EBO IC Value 30 20 5.0 30 Unit Vdc Vdc Vdc mAdc http://onsemi.com COLLECTOR 3 2 BASE 1 EMITTER THERMAL CHARACTERISTICS Characteristic Power Dissipation Junction Temperature Storage Temperature Symbol PD TJ Tstg Max 200 150 −55 to +150 Unit mW °C °C 2 1 3 SC−59 CASE 318D Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress www.DataSheet4U.
