MSC3930-BT1 Datasheet - ON Semiconductor

MSC3930-BT1 NPN RF Amplifier Transistor

MSC3930 BT1 Preferred Device NPN RF Amplifier Transistor Pb Free Package is Available http://onsemi.com COLLECTOR 3 Symbol V(BR)CBO V(BR)CEO V(BR)EBO IC Value 30 20 5.0 30 Unit Vdc Vdc Vdc mAdc 2 BASE 3 MAXIMUM RATINGS (TA = 25°C) Rating Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Continuous THERMAL CHARACTERISTICS Characteristic Power Dissipation Junction Temperature Storage Temperature S.

MSC3930-BT1 Datasheet (68.10 KB)

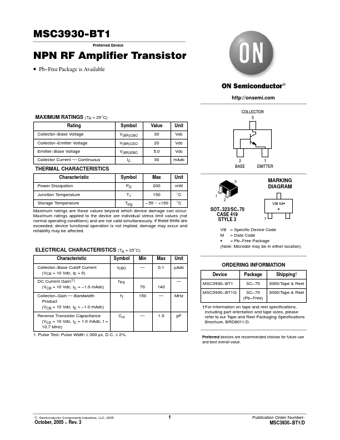

Preview of MSC3930-BT1 PDF

Datasheet Details

Part number:

MSC3930-BT1

Manufacturer:

ON Semiconductor ↗

File Size:

68.10 KB

Description:

Npn rf amplifier transistor.
