MSD1010T1 - Low Saturation Volgate PNP Silicon Driver Transistors

Datasheet Summary

Features

  • erquist Company. ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to.

📥 Download Datasheet

Datasheet preview – MSD1010T1

Datasheet Details

Part number MSD1010T1
Manufacturer ON Semiconductor
File Size 77.36 KB
Description Low Saturation Volgate PNP Silicon Driver Transistors
Datasheet download datasheet MSD1010T1 Datasheet
Additional preview pages of the MSD1010T1 datasheet.

📁 Similar Datasheet

  • MSD1010T1 - Low Saturation Voltage (Leshan Radio Company)
  • MSD1010T1 - PNP Silicon Driver Transistors (Motorola)
  • MSD1010T1 - Low Saturation Voltage (E-Tech)
  • MSD100 - Glass Passivated Three Phase Rectifier Bridge (Microsemi)
  • MSD100DA-X - Ultra High Brightness Red Led Lamp (Micro Electronics)
  • MSD1048 - Coupled Inductors (Coilcraft)
  • MSD1048-103ME - Coupled Inductors (Coilcraft)
  • MSD1048-104ME - Coupled Inductors (Coilcraft)
  • MSD1048-222NE - Coupled Inductors (Coilcraft)
  • MSD1048-223ME - Coupled Inductors (Coilcraft)
Other Datasheets by ON Semiconductor
  • MSD1819A-RT1 - General Purpose Amplifier Transistor
  • MSD2714AT1 - VHF/UHF Transistor
  • MSD42SWT1 - NPN Silicon General Purpose High Voltage Transistor
  • MSD42SWT1G - NPN Silicon General Purpose High Voltage Transistor
  • MSD42T1 - NPN Silicon General Purpose High Voltage Transistors
  • MSD42WT1 - NPN Silicon General Purpose High Voltage Transistors
  • MSD601-RT1 - NPN General Purpose Amplifier Transistors
  • MSD601-RT1G - NPN General Purpose Amplifier Transistor

Full PDF Text Transcription

Click to expand full text

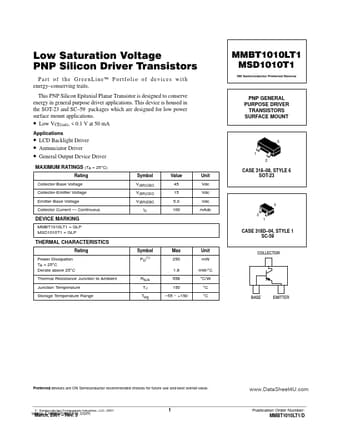

Low Saturation Voltage PNP Silicon Driver Transistors Part of the GreenLine™ Portfolio of devices with energy–conserving traits. This PNP Silicon Epitaxial Planar Transistor is designed to conserve energy in general purpose driver applications. This device is housed in the SOT-23 and SC–59 packages which are designed for low power surface mount applications. • Low VCE(sat), < 0.1 V at 50 mA Applications MMBT1010LT1 MSD1010T1 ON Semiconductor Preferred Devices PNP GENERAL PURPOSE DRIVER TRANSISTORS SURFACE MOUNT • LCD Backlight Driver • Annunciator Driver • General Output Device Driver MAXIMUM RATINGS (TA = 25°C) Rating Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current — Continuous Symbol V(BR)CBO V(BR)CEO V(BR)EBO IC Value 45 15 5.
