MSD1819A-RT1 - General Purpose Amplifier Transistor

Datasheet Summary

Features

  • High hFE, 210 -- 460.
  • Low VCE(sat), < 0.5 V.
  • Moisture Sensitivity Level 1.
  • ESD Protection: Human Body Model > 4000 V Machine Model > 400 V.
  • These Devices are Pb--Free, Halogen Free/BFR Free and are RoHS Compliant.

📥 Download Datasheet

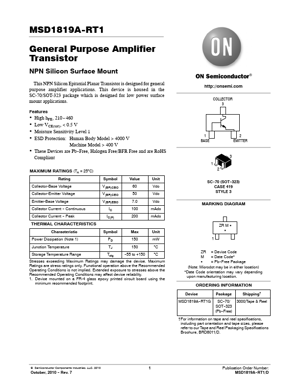

Datasheet preview – MSD1819A-RT1

Datasheet Details

Part number MSD1819A-RT1
Manufacturer ON Semiconductor
File Size 205.09 KB
Description General Purpose Amplifier Transistor
Datasheet download datasheet MSD1819A-RT1 Datasheet
Additional preview pages of the MSD1819A-RT1 datasheet.

📁 Similar Datasheet

  • MSD1819A-RT1 - General Purpose Amplifier Transistor (Motorola)
  • MSD1819A-ST1 - General Purpose Amplifier Transistor (Motorola)
  • MSD100 - Glass Passivated Three Phase Rectifier Bridge (Microsemi)
  • MSD100DA-X - Ultra High Brightness Red Led Lamp (Micro Electronics)
  • MSD1010T1 - Low Saturation Voltage (Leshan Radio Company)
  • MSD1010T1 - PNP Silicon Driver Transistors (Motorola)
  • MSD1010T1 - Low Saturation Voltage (E-Tech)
  • MSD1048 - Coupled Inductors (Coilcraft)
  • MSD1048-103ME - Coupled Inductors (Coilcraft)
  • MSD1048-104ME - Coupled Inductors (Coilcraft)
Other Datasheets by ON Semiconductor
  • MSD1010T1 - Low Saturation Volgate PNP Silicon Driver Transistors
  • MSD2714AT1 - VHF/UHF Transistor
  • MSD42SWT1 - NPN Silicon General Purpose High Voltage Transistor
  • MSD42SWT1G - NPN Silicon General Purpose High Voltage Transistor
  • MSD42T1 - NPN Silicon General Purpose High Voltage Transistors
  • MSD42WT1 - NPN Silicon General Purpose High Voltage Transistors
  • MSD601-RT1 - NPN General Purpose Amplifier Transistors
  • MSD601-RT1G - NPN General Purpose Amplifier Transistor

Full PDF Text Transcription

Click to expand full text
MSD1819A- RT1 General Purpose Amplifier Transistor NPN Silicon Surface Mount This NPN Silicon Epitaxial Planar Transistor is designed for general purpose amplifier applications. This device is housed in the SC-70/SOT-323 package which is designed for low power surface mount applications. Features  High hFE, 210 -- 460  Low VCE(sat), < 0.5 V  Moisture Sensitivity Level 1  ESD Protection: Human Body Model > 4000 V Machine Model > 400 V  These Devices are Pb--Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (TA = 25C) Rating Symbol Value Unit Collector-Base Voltage V(BR)CBO 60 Vdc Collector-Emitter Voltage V(BR)CEO 50 Vdc Emitter-Base Voltage V(BR)EBO 7.
