MSD2714AT1 - VHF/UHF Transistor

Datasheet Summary

Features

  • Pb.
  • Free Package is Available.

📥 Download Datasheet

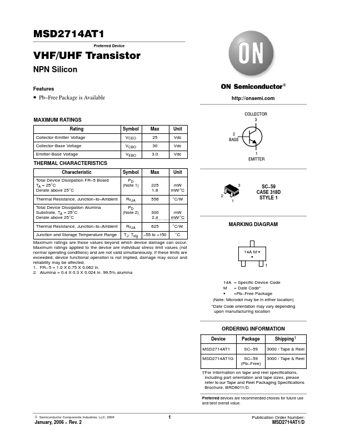

Datasheet preview – MSD2714AT1

Datasheet Details

Part number MSD2714AT1
Manufacturer ON Semiconductor
File Size 80.20 KB
Description VHF/UHF Transistor
Datasheet download datasheet MSD2714AT1 Datasheet
