NB3F8L3010C - 3.3V / 2.5V / 1.8V / 1.5V 3:1:10 LVCMOS Fanout Buffer

Product Overview

ON Semiconductor

Datasheet Details

Part number	NB3F8L3010C
Manufacturer	ON Semiconductor
File Size	110.40 KB
Description	3.3V / 2.5V / 1.8V / 1.5V 3:1:10 LVCMOS Fanout Buffer
Datasheet	NB3F8L3010C Datasheet

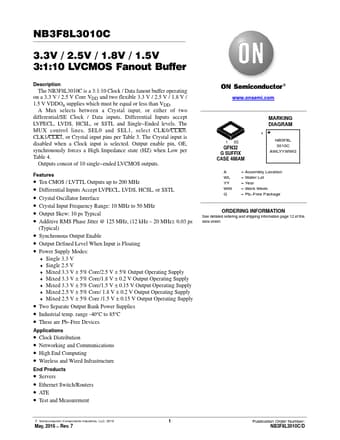

Additional preview pages of the NB3F8L3010C datasheet.

Product details

Description

The NB3F8L3010C is a 3:1:10 Clock / Data fanout buffer operating on a 3.3 V / 2.5 V Core VDD and two flexible 3.3 V / 2.5 V / 1.8 V / 1.5 V VDDOn supplies which must be equal or less than VDD.A Mux selects between a Crystal input, or either of two differential/SE Clock / Data inputs.Differential Inputs accept LVPECL, LVDS, HCSL, or SSTL and Single Ended levels.

Features

Ten CMOS / LVTTL Outputs up to 200 MHz.
Differential Inputs Accept LVPECL, LVDS, HCSL, or SSTL.
Crystal Oscillator Interface.
Crystal Input Frequency Range: 10 MHz to 50 MHz.
Output Skew: 10 ps Typical.
Additive R.
