NB3N106K

3.3V Differential 1:6 Fanout Clock Driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part onsemi NB3N106KMNR2G IC CLK BUFFER 1:6 400MHZ 24QFN DigiKey 0 0
$0

NB3N106K Datasheet (141.61 KB)

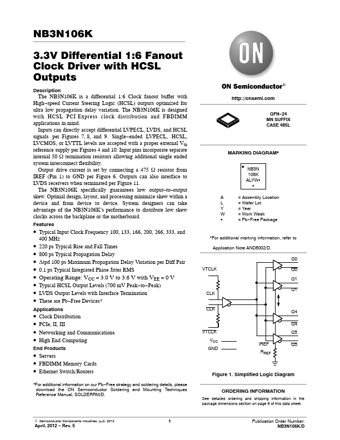

Preview of NB3N106K PDF

Datasheet Details

Part number:

NB3N106K

Manufacturer:

ON Semiconductor ↗

File Size:

141.61 KB

Description:

3.3v differential 1:6 fanout clock driver.

NB3N106K Features

* Typical Input Clock Frequency 100, 133, 166, 200, 266, 333, and 400 MHz

* 220 ps Typical Rise and Fall Times

* 800 ps Typical Propagation Delay

* Dtpd 100 ps Maximum Propagation Delay Variation per Diff Pair

* 0.1 ps Typical Integrated Phase Jitter RMS

NB3N106K General Description

The NB3N106K is a differential 1:6 Clock fanout buffer with High

*speed Current Steering Logic (HCSL) outputs optimized for ultra low propagation delay variation. The NB3N106K is designed with HCSL PCI Express clock distribution and FBDIMM applications in mind. Inputs can directly accept diff.
