NB3N1900K Datasheet - ON Semiconductor

NB3N1900K 3.3V 100/133MHz Differential 1:19 HCSL Clock ZDB/Fanout Buffer

The NB3N1900K differential clock buffers are designed to work in conjunction with a PCIe compliant source clock synthesizer to provide point *to *point clocks to multiple agents. The device is capable of distributing the reference clocks for Intel® QuickPath Interconnect (Intel QPI), P.

NB3N1900K Features

* Fixed Feedback Path for Lowest Input

* to

* Output Delay

* Eight Dedicated OE# Pins for Hardware Control of Outputs

* PLL Bypass Configurable for PLL or Fanout Operation

* Selectable PLL Bandwidth

* Spread Spectrum Compatible: Tracks Input Clock

NB3N1900K-ONSemiconductor.pdf

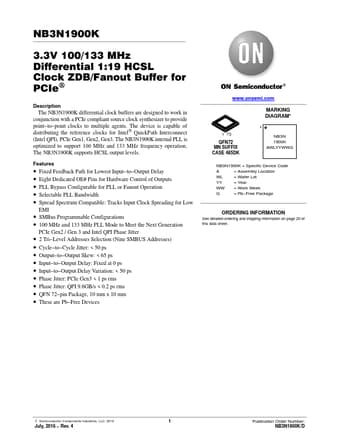

Preview of NB3N1900K PDF
NB3N1900K Datasheet Preview Page 2 NB3N1900K Datasheet Preview Page 3

Datasheet Details

Part number:

NB3N1900K

Manufacturer:

ON Semiconductor ↗

File Size:

229.27 KB

Description:

3.3v 100/133mhz differential 1:19 hcsl clock zdb/fanout buffer.
