NB3N108K Datasheet, Driver, ON Semiconductor

NB3N108K Features

  • Driver
  • Typical Input Clock Frequency 100, 133, 166, or 400 MHz
  • 220 ps Typical Rise and Fall Times
  • 800 ps Typical Propagation Delay
  • Dtpd 100 ps Maximum P

PDF File Details

Part number:

NB3N108K

Manufacturer:

ON Semiconductor ↗

File Size:

139.91kb

Download:

📄 Datasheet

Description:

3.3v differential 1:8 fanout clock data driver. The NB3N108K is a differential 1:8 Clock fanout buffer with High

  • speed Current Steering Logic (HCSL) outputs optimized for ul

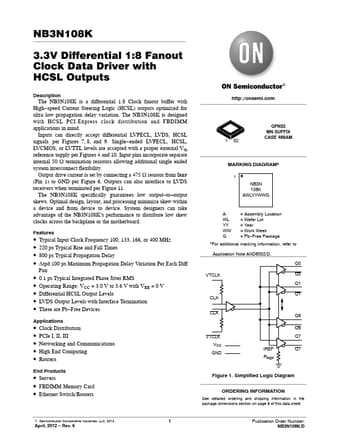

  • Datasheet Preview: NB3N108K 📥 Download PDF (139.91kb)
    Page 2 of NB3N108K Page 3 of NB3N108K

    NB3N108K Application

    • Applications in mind. Inputs can directly accept differential LVPECL, LVDS, HCSL signals per Figures 7, 8, and 9. Single
