NB7L1008

2.5V / 3.3V 1:8 LVPECL Fanout Buffer

ON Semiconductor

NB7L1008 Features

* Typical Maximum Input Data Rate > 12 Gb/s Typical

* Data Dependent Jitter < 15 ps

* Maximum Input Clock Frequency > 7 GHz Typical

* Random Clock Jitter < 0.8 ps RMS

* Low Skew 1:8 LVPECL Outputs, < 20 ps max

* Multi

* Level Inputs, accepts LVPE

NB7L1008 General Description

The NB7L1008 is a high performance differential 1:8 Clock/Data fanout buffer. The NB7L1008 produces eight identical output copies of Clock or Data operating up to 7 GHz or 12 Gb/s, respectively. As such, the NB7L1008 is ideal for SONET, GigE, Fiber Channel, Backplane and other Clock/Data distributio.

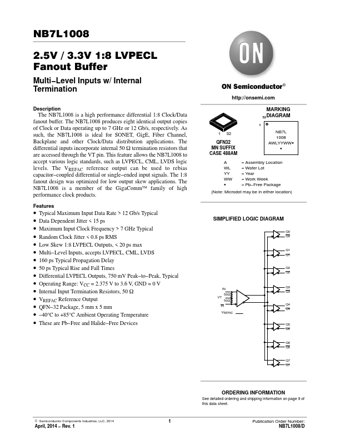

NB7L1008 Datasheet (179.81 KB)
