NB7L1008M Datasheet - ON Semiconductor

NB7L1008M a high performance differential 1:8 Clock/Data fanout buffer

The NB7L1008M is a high performance differential 1:8 Clock/Data fanout buffer. The NB7L1008M produces eight identical output copies of Clock or Data operating up to 6 GHz or 10.7 Gb/s, respectively. As such, the NB7L1008M is ideal for SONET, GigE, Fiber Channel, Backplane and other Clock/Data distri.

NB7L1008M Features

* Input Data Rate > 12 Gb/s Typical

* Data Dependent Jitter < 20 ps

* Maximum Input Clock Frequency > 8 GHz Typical

* Random Clock Jitter < 0.8 ps RMS

* Low Skew 1:8 CML Outputs, < 25 ps max

* Multi

* Level Inputs, accepts LVPECL, CML, LVDS

NB7L1008M Datasheet (223.81 KB)

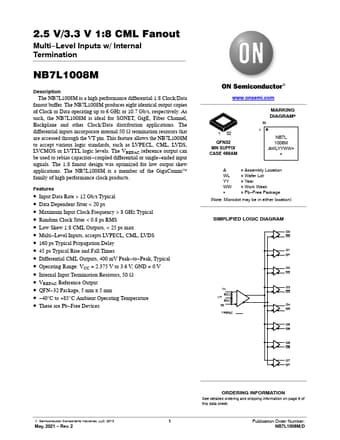

Preview of NB7L1008M PDF

Datasheet Details

Part number:

NB7L1008M

Manufacturer:

ON Semiconductor ↗

File Size:

223.81 KB

Description:

A high performance differential 1:8 clock/data fanout buffer.
