NC7SZ125 - TinyLogic UHS Buffer

Datasheet Summary

Description

The NC7SZ125 is a single buffer with three state output from onsemi’s Ultra

High Speed (UHS) of TinyLogic.

Features

  • Ultra.
  • High Speed: tPD = 2.6 ns (Typical) into 50 pF at 5 V VCC.
  • High Output Drive: ±24 mA at 3 V VCC.
  • Broad VCC Operating Range: 1.65 V to 5.5 V.
  • Matches Performance of LCX when Operated at 3.3 V VCC.
  • Power Down High.
  • Impedance Inputs / Outputs.
  • Over.
  • Voltage Tolerance Inputs Facilitate 5 V to 3 V Translation.
  • Proprietary Noise / EMI Reduction Circuitry.
  • Ultra.
  • Small MicroPak™ Packages.

📥 Download Datasheet

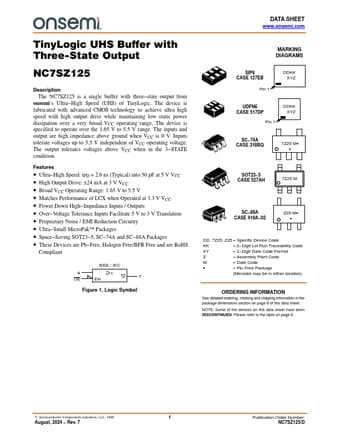

Datasheet preview – NC7SZ125

Datasheet Details

Part number NC7SZ125
Manufacturer ON Semiconductor
File Size 475.18 KB
Description TinyLogic UHS Buffer
Datasheet download datasheet NC7SZ125 Datasheet
Additional preview pages of the NC7SZ125 datasheet.

📁 Similar Datasheet

  • NC7SZ125 - UHS Buffer (Fairchild)
  • NC7SZ126 - TinyLogic UHS Buffer (Fairchild)
  • NC7SZ10 - TinyLogic UHS 3-Input NAND Gate (Fairchild)
  • NC7SZ11 - TinyLogic UHS 3-Input AND Gate (Fairchild)
  • NC7SZ14 - TinyLogic UHS Inverter (Fairchild)
  • NC7SZ157 - TinyLogic UHS 2-Input Non-Inverting Multiplexer (Fairchild)
  • NC7SZ175 - TinyLogic UHS D-Type Flip-Flop (Fairchild)
  • NC7SZ18 - TinyLogic UHS 1-of-2 Non-Inverting Demultiplexer (Fairchild)
  • NC7SZ19 - TinyLogic UHS 1-of-2 Decoder/Demultiplexer (Fairchild)
  • NC7SZ00 - UHS 2-Input NAND Gate (Fairchild)
Other Datasheets by ON Semiconductor
  • NC7SZ126 - TinyLogic UHS Buffer
  • NC7SZ10 - TinyLogic UHS 3-Input NAND Gate
  • NC7SZ11 - TinyLogic UHS Three-Input AND Gate
  • NC7SZ14 - TinyLogic UHS Inverter
  • NC7SZ157 - TinyLogic UHS 2-Input Non-Inverting Multiplexer
  • NC7SZ175 - TinyLogic UHS D-Type Flip-Flop
  • NC7SZ18 - TinyLogic UHS 1-of-2 Non-Inverting De-multiplexer
  • NC7SZ19 - TinyLogic UHS 1-of-2 Decoder/Demultiplexer

Full PDF Text Transcription

Click to expand full text
TinyLogic UHS Buffer with Three-State Output NC7SZ125 Description The NC7SZ125 is a single buffer with three−state output from onsemi’s Ultra−High Speed (UHS) of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65 V to 5.5 V range. The inputs and output are high impedance above ground when VCC is 0 V. Inputs tolerate voltages up to 5.5 V independent of VCC operating voltage. The output tolerates voltages above VCC when in the 3−STATE condition. Features • Ultra−High Speed: tPD = 2.6 ns (Typical) into 50 pF at 5 V VCC • High Output Drive: ±24 mA at 3 V VCC • Broad VCC Operating Range: 1.
