NC7SZ14 - TinyLogic UHS Inverter

Datasheet Summary

Description

The NC7SZ14 is a single inverter with Schmitt trigger input from onsemi’s Ultra

High Speed (UHS) series of TinyLogic.

high speed with high output drive while maintaining low static power dissipation over a very

Features

Ultra.
High Speed: tPD = 3.7 ns (Typical) into 50 pF at 5 V VCC.
High Output Drive: ±24 mA at 3 V VCC.
Broad VCC Operating Range: 1.65 V to 5.5 V.
Matches Performance of LCX when Operated at 3.3 V VCC.
Power Down High Impedance Inputs / Outputs.
Over.
Voltage Tolerance Inputs Facilitate 5 V to 3 V Translation.
Proprietary Noise / EMI Reduction Circuitry.
Ultra.
Small MicroPak™ Packages.
Space.

Datasheet Details

Part number	NC7SZ14
Manufacturer	ON Semiconductor
File Size	496.19 KB
Description	TinyLogic UHS Inverter
Datasheet	NC7SZ14 Datasheet

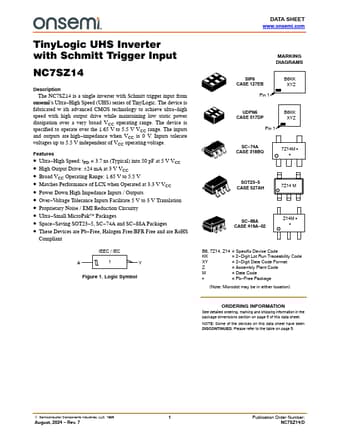

Additional preview pages of the NC7SZ14 datasheet.

📁 Similar Datasheet

NC7SZ14 - TinyLogic UHS Inverter (Fairchild)

NC7SZ10 - TinyLogic UHS 3-Input NAND Gate (Fairchild)

NC7SZ11 - TinyLogic UHS 3-Input AND Gate (Fairchild)

NC7SZ125 - UHS Buffer (Fairchild)

NC7SZ126 - TinyLogic UHS Buffer (Fairchild)

NC7SZ157 - TinyLogic UHS 2-Input Non-Inverting Multiplexer (Fairchild)

NC7SZ175 - TinyLogic UHS D-Type Flip-Flop (Fairchild)

NC7SZ18 - TinyLogic UHS 1-of-2 Non-Inverting Demultiplexer (Fairchild)

NC7SZ19 - TinyLogic UHS 1-of-2 Decoder/Demultiplexer (Fairchild)

NC7SZ00 - UHS 2-Input NAND Gate (Fairchild)

Full PDF Text Transcription

Click to expand full text

TinyLogic UHS Inverter with Schmitt Trigger Input NC7SZ14 Description The NC7SZ14 is a single inverter with Schmitt trigger input from onsemi’s Ultra−High Speed (UHS) series of TinyLogic. The device is fabricated w ith advanced CMOS technology to achieve ultra−high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65 V to 5.5 V VCC range. The inputs and outputs are high−impedance when VCC is 0 V. Inputs tolerate voltages up to 5.5 V independent of VCC operating voltage. Features • Ultra−High Speed: tPD = 3.7 ns (Typical) into 50 pF at 5 V VCC • High Output Drive: ±24 mA at 3 V VCC • Broad VCC Operating Range: 1.65 V to 5.5 V • Matches Performance of LCX when Operated at 3.
